稳压二极管 13V 350mW
- 齐纳 13 V 350 mW ±5% 表面贴装型 SOT-23-3
得捷:
DIODE ZENER 13V 350MW SOT23-3
立创商城:
13V 350mW
贸泽:
稳压二极管 13V 350mW
艾睿:
Check out this perfect MMBZ5243B-7-F zener diode from Diodes Zetex for operating in the reverse breakdown region. Its maximum leakage current is 0.5 μA. Its test current is 9.5 mA. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 13 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 13V 5% 350mW 3-Pin SOT-23 T/R
Chip1Stop:
Diode Zener Single 13V 5% 350mW Automotive 3-Pin SOT-23 T/R
Verical:
Diode Zener Single 13V 5% 350mW Automotive 3-Pin SOT-23 T/R
Win Source:
DIODE ZENER 13V 350MW SOT23-3
额定电压DC 13.0 V
容差 ±5 %
额定功率 350 mW
正向电压 0.9 V
耗散功率 350 mW
测试电流 9.5 mA
稳压值 13 V
正向电压Max 900mV @10mA
额定功率Max 350 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3

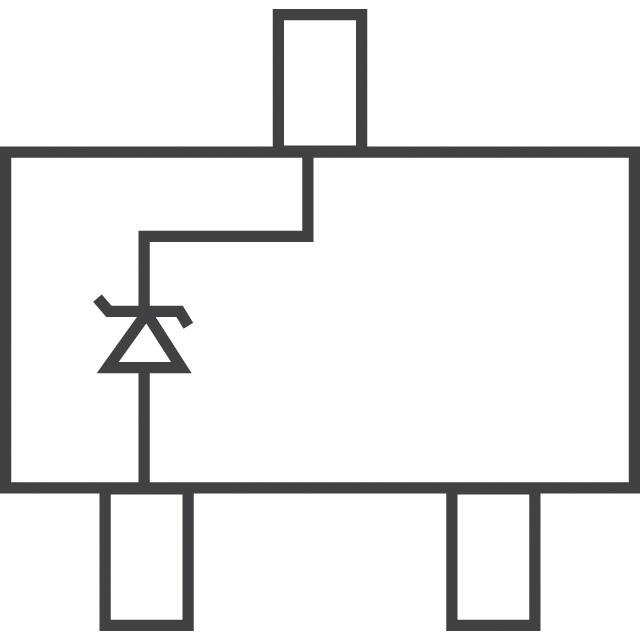

封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBZ5243B-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5243B-7 美台 | 类似代替 | MMBZ5243B-7-F和MMBZ5243B-7的区别 |
MMBZ5243B 安森美 | 功能相似 | MMBZ5243B-7-F和MMBZ5243B的区别 |
CMPZ5243B BK Central Semiconductor | 功能相似 | MMBZ5243B-7-F和CMPZ5243B BK的区别 |
