Diode Zener Single 5.1V 5% 200mW Automotive 3Pin SOT-323 T/R
This zener diode from Zetex will allow you to run it in the reverse direction. Its maximum leakage current is 5 μA. Its maximum power dissipation is 200 mW. Its test current is 20 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
额定电压DC 5.10 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 20 mA
稳压值 5.1 V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min 65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

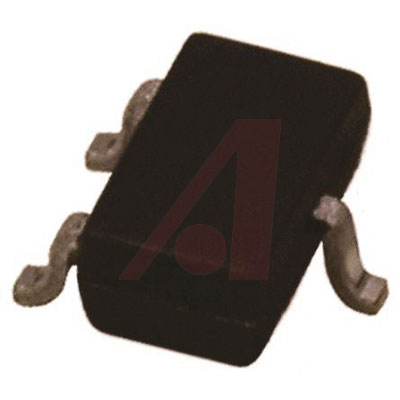

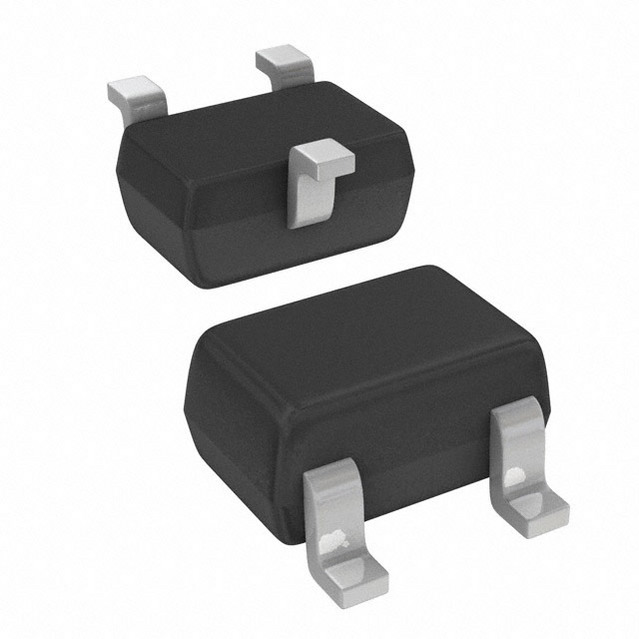

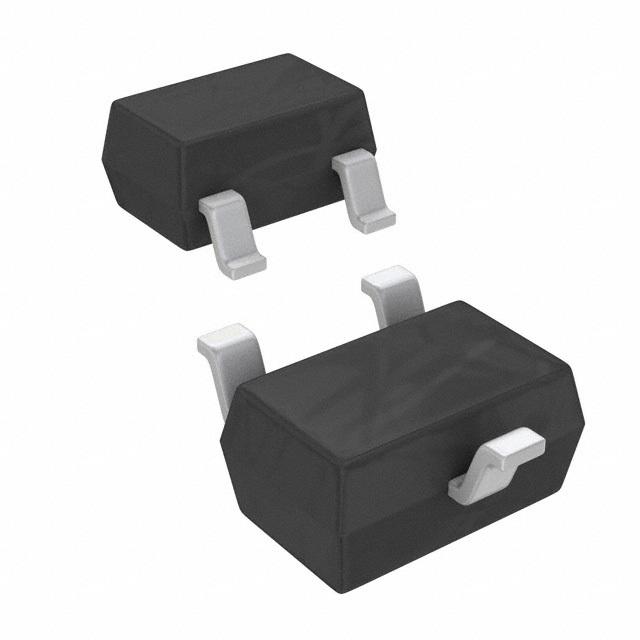

封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MMBZ5231BW-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5231BW-7 美台 | 类似代替 | MMBZ5231BW-7-F和MMBZ5231BW-7的区别 |
MMBZ5231BW-TP 美微科 | 功能相似 | MMBZ5231BW-7-F和MMBZ5231BW-TP的区别 |
CMSZ5231B Central Semiconductor | 功能相似 | MMBZ5231BW-7-F和CMSZ5231B的区别 |
