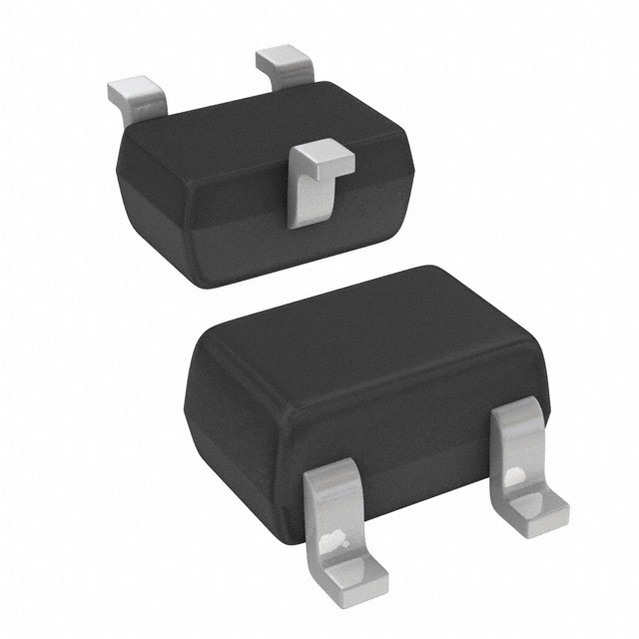

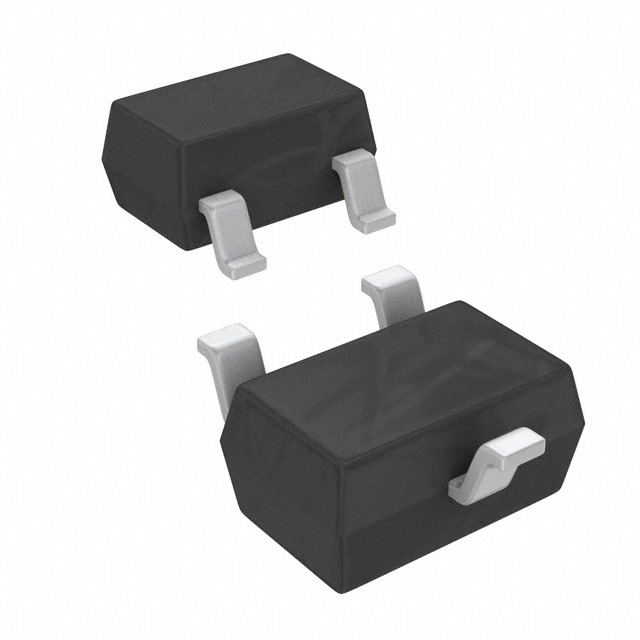

DIODE ZENER 36V 200mW SOT323
- 齐纳 ±5% 表面贴装型 SOT-23-3
得捷:
DIODE ZENER 36V 200MW SOT23-3
贸泽:
Zener Diodes 36V 200mW
艾睿:
This MMBZ5258BW-7-F zener diode from Diodes Zetex is perfect for blocking a voltage. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 200 mW. Its test current is 3.4 mA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 36 V and a voltage tolerance of 5%.
安富利:
Diode Zener Single 36V 5% 200mW 3-Pin SOT-323 T/R
Chip1Stop:
Diode Zener Single 36V 5% 200mW 3-Pin SOT-323 T/R
Verical:
Diode Zener Single 36V 5% 200mW Automotive 3-Pin SOT-323 T/R
Win Source:
DIODE ZENER 36V 200MW SOT323
额定电压DC 36.0 V
容差 ±5 %
额定功率 200 mW
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 3.4 mA
稳压值 36 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323-3
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBZ5258BW-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMBZ5258BW-7 美台 | 完全替代 | MMBZ5258BW-7-F和MMBZ5258BW-7的区别 |
MMBZ5258BW-TP 美微科 | 功能相似 | MMBZ5258BW-7-F和MMBZ5258BW-TP的区别 |
CMSZ5258B Central Semiconductor | 功能相似 | MMBZ5258BW-7-F和CMSZ5258B的区别 |
