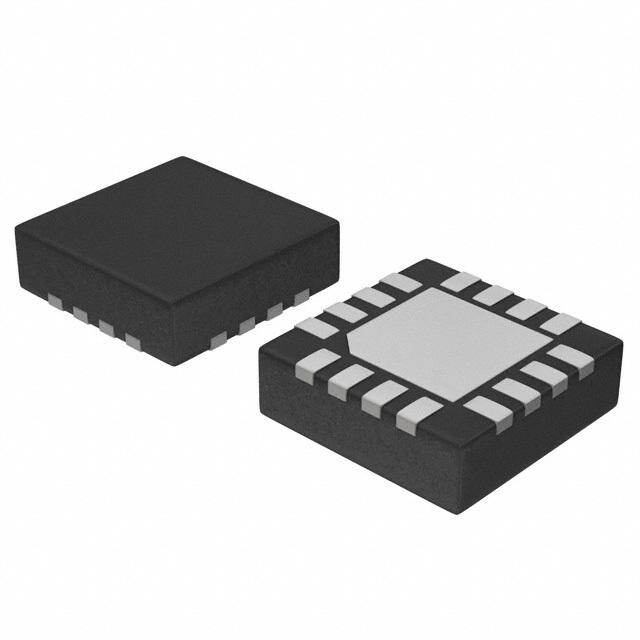

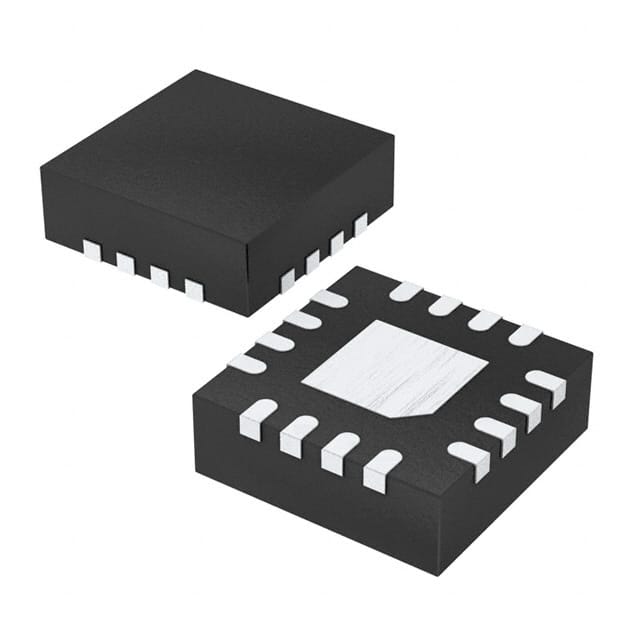

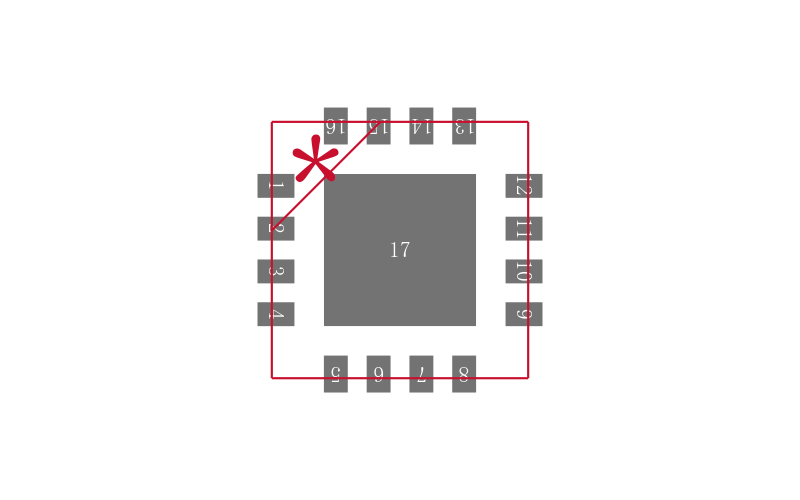

NBSG16VSMNR2G

2.5V / 3.3V的SiGe差分接收器/驱动器，带有可变输出摆幅 2.5V/3.3V SiGe Differential Receiver/Driver with Variable Output Swing

Description

The NBSG16VS is a differential receiver/driver targeted for high frequency applications that require variable output swing. The device is functionally equivalent to the EP16VS device with much higher bandwidth and lower EMI capabilities. This device may be used for applications driving VCSEL lasers. Inputs incorporate internal 50 termination resistors and accept NECL Negative ECL, PECL Positive ECL, LVTTL, LVCMOS, CML, or LVDS. The output amplitude is varied by applying a voltage to the VCTRL input pin. Outputs are variable swing ECL from 100 mV to 750 mV amplitude, optimized for operation from VCC − VEE = 3.0 V to 3.465 V.

Features

• Maximum Input Clock Frequency up to 12 GHz Typical

• Maximum Input Data Rate up to 12 Gb/s Typical

• 40 ps Typical Rise and Fall Times VCTRL = VCC − 1 V

• 120 ps Typical Propagation Delay VCTRL = VCC − 1 V

• Variable Swing PECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V

• Variable Swing NECL Output with NECL Inputs with

Operating Range: VCC = 0 V with VEE = −2.375 V to −3.465 V

• Output Level 100 mV to 750 mV Peak−to−Peak Output; VCC − VEE = 3.0 V to 3.465 V, Differential Output Only

• 50 Internal Input Termination Resistors

• Compatible with Existing 2.5 V/3.3 V EP Devices

• VBB and VMM Reference Voltage Output

• Pb−Free Packages are Available
