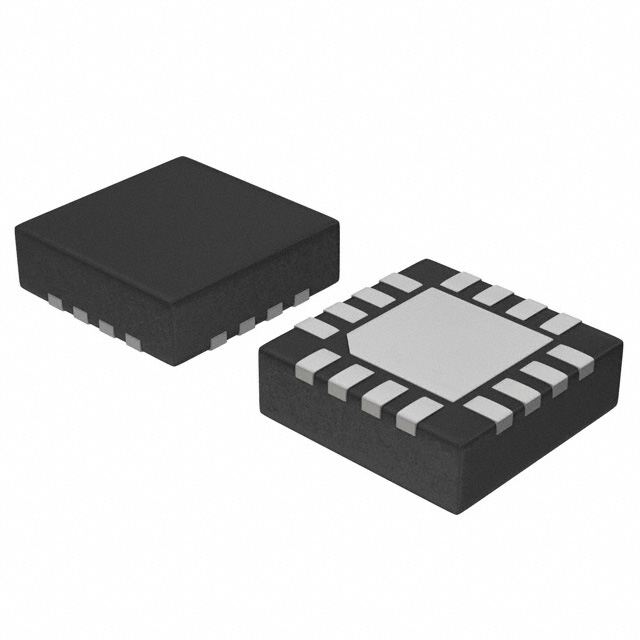

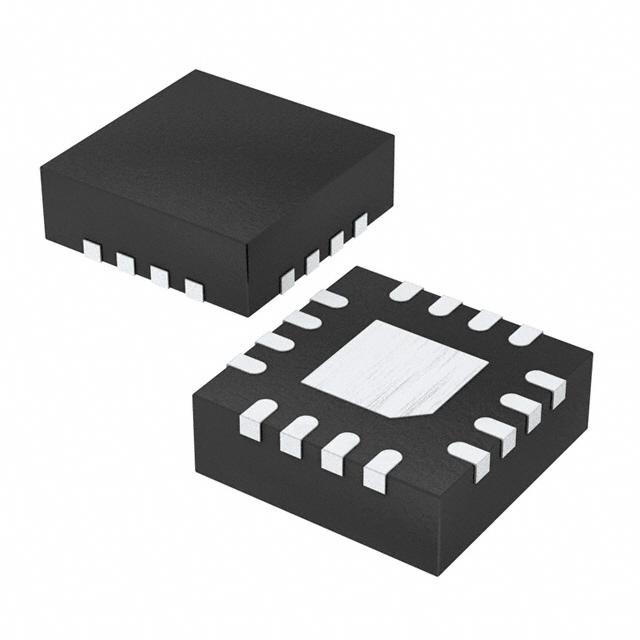

NBSG16MMNG

2.5/3.3V差分接收/驱动器带RSPECL输出

Description

The NBSG16M is a differential current mode logic CML receiver/driver/translator buffer. The device is functionally equivalent to the EP16, LVEP16, or SG16 devices with CML output structure and lower EMI capabilities.

Inputs incorporate internal 50 termination resistors and accept LVNECL Negative ECL, LVPECL Positive ECL, LVTTL, LVCMOS, CML, or LVDS. The CML output structure contains internal 50 source termination resistor to VCC. The device generates 400 mV output amplitude with 50 receiver resistor to VCC.

Features

• Maximum Input Clock Frequency > 10 GHz Typical

• Maximum Input Data Rate > 10 Gb/s Typical

• 120 ps Typical Propagation Delay

• 35 ps Typical Rise and Fall Times

• Positive CML Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V

• Negative CML Output with RSNECL or NECL Inputs with Operating Range: VCC = 0 V with VEE = −2.375 V to −3.465 V

• CML Output Level; 400 mV Peak−to−Peak Output with 50 Receiver Resistor to VCC

• 50 Internal Input and Output Termination Resistors

• Compatible with Existing 2.5 V/3.3 V LVEP, EP, LVEL and SG Devices

• VBB Reference Voltage Output

• Pb−Free Packages are Available
