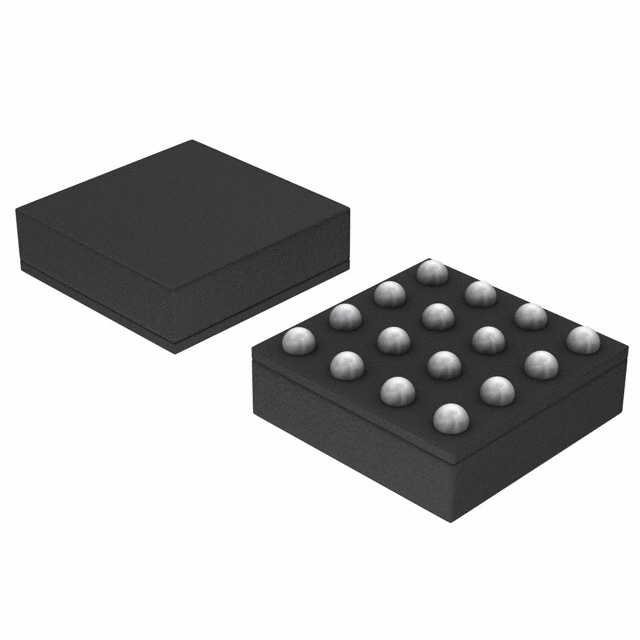

NBSG16BA

2.5V / 3.3V的SiGe差分接收器/驱动器RSECLOutputs 2.5V/3.3V SiGe Differential Receiver/Driver with RSECLOutputs

*Reduced Swing ECL

Description

The NBSG16 is a differential receiver/driver targeted for high frequency applications. The device is functionally equivalent to the EP16 and LVEP16 devices with much higher bandwidth and lower

EMI capabilities.

Inputs incorporate internal 50 termination resistors and accept NECL Negative ECL, PECL Positive ECL, HSTL, LVTTL, LVCMOS, CML, or LVDS. Outputs are RSECL Reduced Swing ECL, 400 mV.

Features

• Maximum Input Clock Frequency > 12 GHz Typical

• Maximum Input Data Rate > 12 Gb/s Typical

• 120 ps Typical Propagation Delay

• 40 ps Typical Rise and Fall Times

• RSPECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V

• RSNECL Output with RSNECL or NECL Inputs with

Operating Range: VCC = 0 V with VEE = −2.375 V to −3.465 V

• RSECL Output Level 400 mV Peak−to−Peak Output, Differential Output Only

• 50 Internal Input Termination Resistors

• Compatible with Existing 2.5 V/3.3 V LVEP, EP, and LVEL Devices

• VBB and VMM Reference Voltage Output

• Pb−Free Packages are Available
