Cap Niobium 6.8uF 10V 20% 3.2 X 1.6 X 1.6mm SMD 2.6Ω 105℃ T/R
6.8µF Niobium Oxide Capacitor 10V 1206 3216 Metric 2.6 Ohms
立创商城:
6.8uF ±20% 10V
艾睿:
Cap Niobium 6.8uF 10V 20% 3.2 X 1.6 X 1.6mm SMD 2.6 Ohm 105°C Automotive T/R
安富利:
Five additional case sizes are available in the NOJ range offering low profile solid niobium oxide capacitors. Designed for applications where maximum height of components above or below board are of prime consideration, this height of 1.2, 1.5 and 2.0mm equates to that of a standard integrated circuit package after mounting. The S&T footprints are identical to the A&B case size parts and the W&Y footprints to C&D case size parts.
Newark:

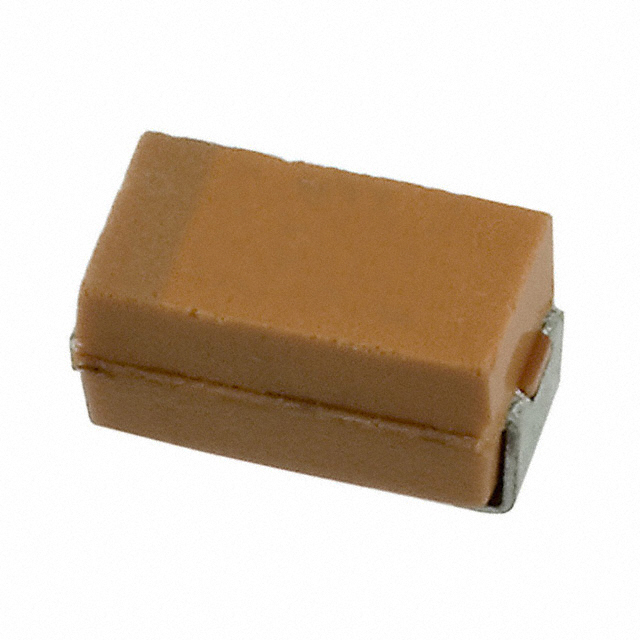

# AVX NOJA685M010RWJ CAPACITOR NIOBIUM OXIDE 6.8UF, 10V, 20%, 1206
额定电压DC 10.0 V
电容 6.8 µF
等效串联电阻ESR 2.6 Ω
容差 ±20 %
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
