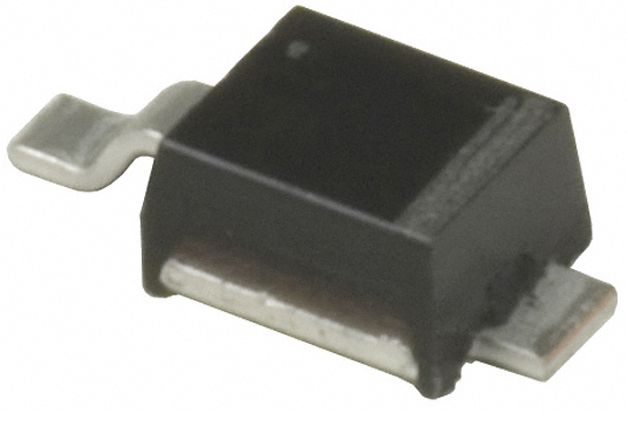

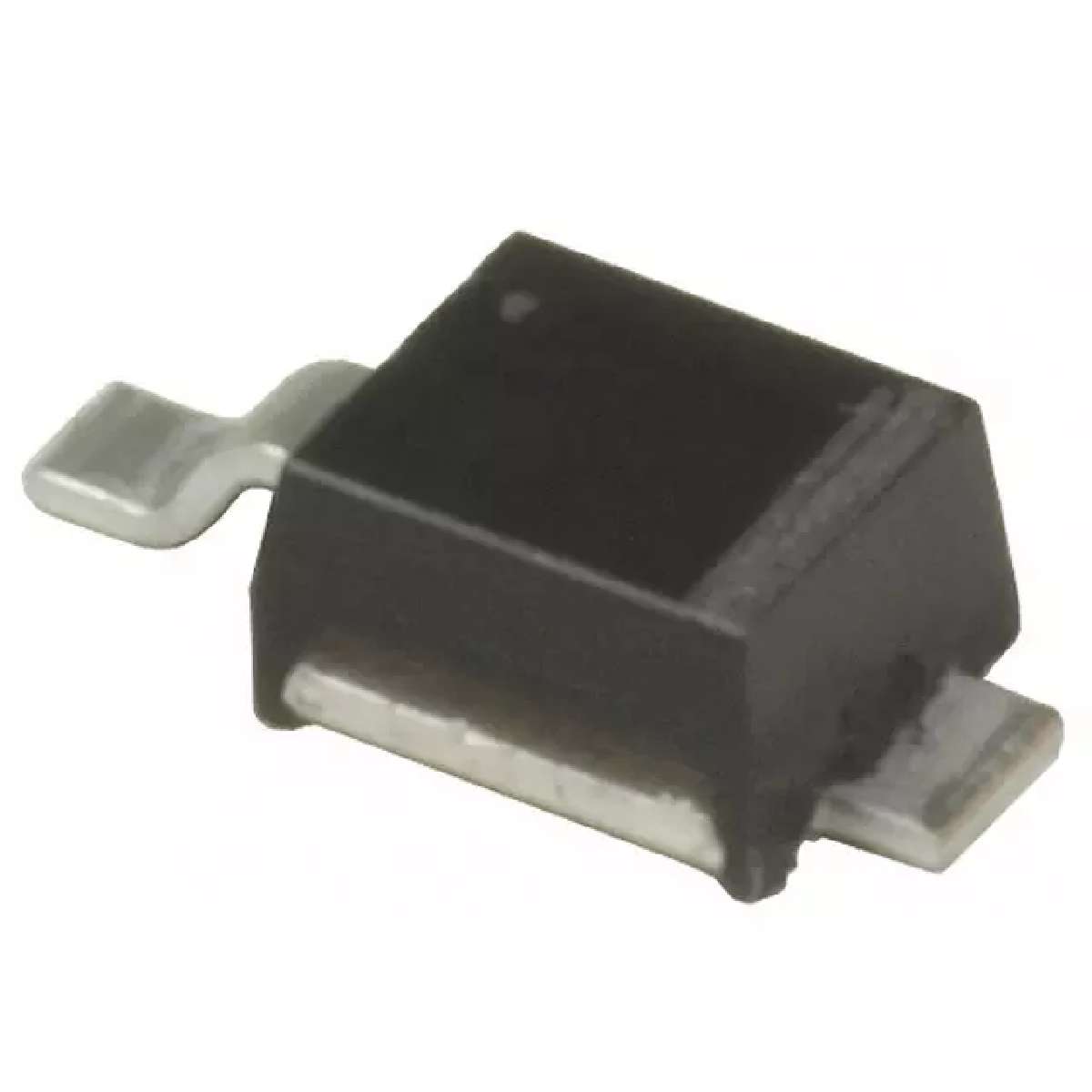

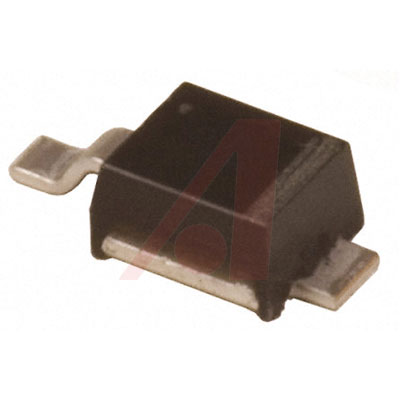

ON SEMICONDUCTOR NUD4700SNT1G 晶闸管, 10 V, 1.3 A, 1 A, 457-04, 2 引脚
LED 分流器保护器，On Semiconductor
这些设备在一个 LED 出现故障时提供电流旁通，确保整串 LED 不受一个 LED 故障影响。在需要高度可靠的照明应用中特别有用。它们还适用于其他需要电路连续性的负载。
### 瞬态电压抑制器，On Semiconductor
欧时:
LED 分流器保护器，On Semiconductor这些设备在一个 LED 出现故障时提供电流旁通，确保整串 LED 不受一个 LED 故障影响。在需要高度可靠的照明应用中特别有用。它们还适用于其他需要电路连续性的负载。### 瞬态电压抑制器，On Semiconductor
得捷:
LIGHT PROTECT LED SHUNT 5.5V SMD
立创商城:
NUD4700SNT1G
贸泽:
LED Protection Devices SCR Shunt
艾睿:
This NUD4700SNT1G circuit protection device from ON Semiconductor will protect your electrical or electronic equipment from getting damaged.
Allied Electronics:
NUD4700SNT1G; Uni-Directional LED ShuntProtector; 1.56W; 2-Pin Powermite
安富利:
Circuit Protection Misc LED Shunt Protector
Chip1Stop:
Circuit Protection Misc LED Shunt Protector
TME:
Driver; current shunt, LED driver; 1V; POWERMITE; 1.56W; 1.3A
Verical:
Circuit Protection Misc LED Shunt Protector
Newark:
# ON SEMICONDUCTOR NUD4700SNT1G Thyristor, 10 V, 1.3 A, 1 A, 457-04, 2 Pins
力源芯城:
LED保护器
Win Source:
IC LED SHUNT POWERMITE
工作电压 5.5 V
额定功率 1.56 W
无卤素状态 Halogen Free
击穿电压 7.5 V
电路数 1
针脚数 2
测试电流 1 A
最大反向击穿电压 7.5 V
脉冲峰值功率 1.56 W
保持电流Max 12 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-216AA
长度 2.05 mm
宽度 2.18 mm
高度 1.15 mm
封装 DO-216AA
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, LED Lighting, Powe, Overvoltage Protection for Sensitive Circuits, Crowbar Protection for Open Circuit Conditions, LED Lighting, LEDs where Preventive Maintenance is Non Practical, LED 保护, Power Management, LEDs with High Reliability Requirements
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 ECL99
