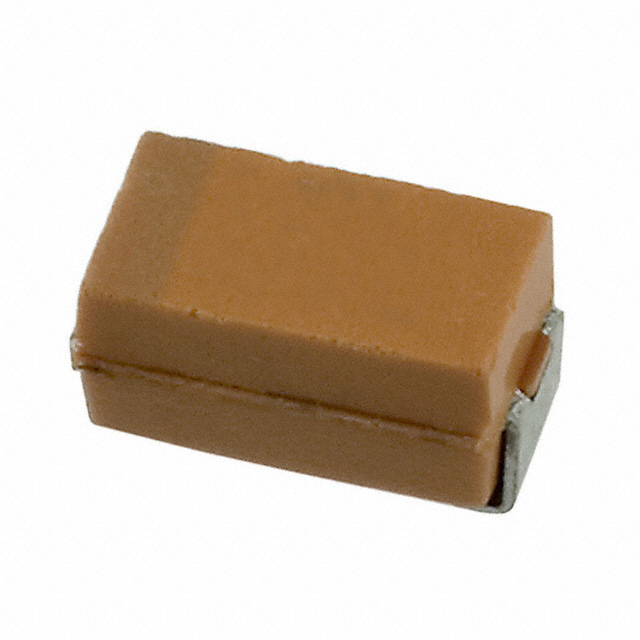

AVX NOJA475M006RWJ 电容, 4.7UF 6.3V A封装
Due to its manufacturing principle, this niobium oxide capacitor from can only be operated with direct current voltage in correct polarity. It can withstand a voltage of 6.3 VDC. This niobium oxide capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1.1 μA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. Its capacitance value is 4.7uF.
额定电压DC 6.3 V
电容 4.7 µF
等效串联电阻ESR 3.2 Ω
容差 ±20 %
纹波电流 0.168 A
工作温度Max 105 ℃
工作温度Min 105 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206

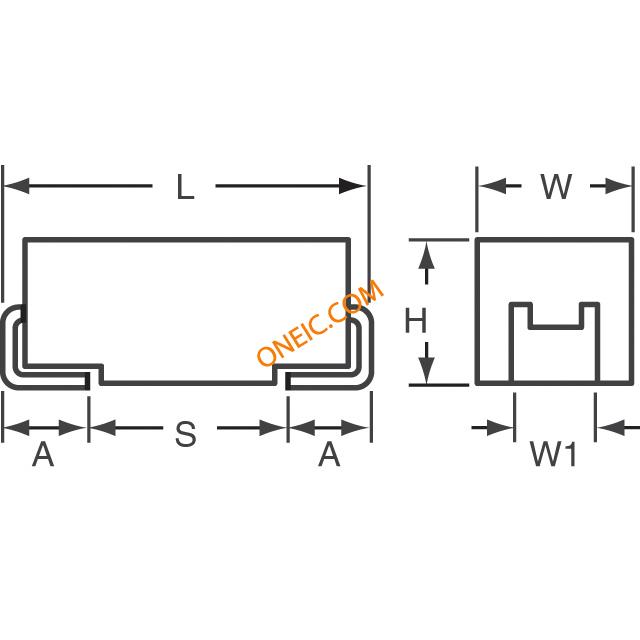

长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
