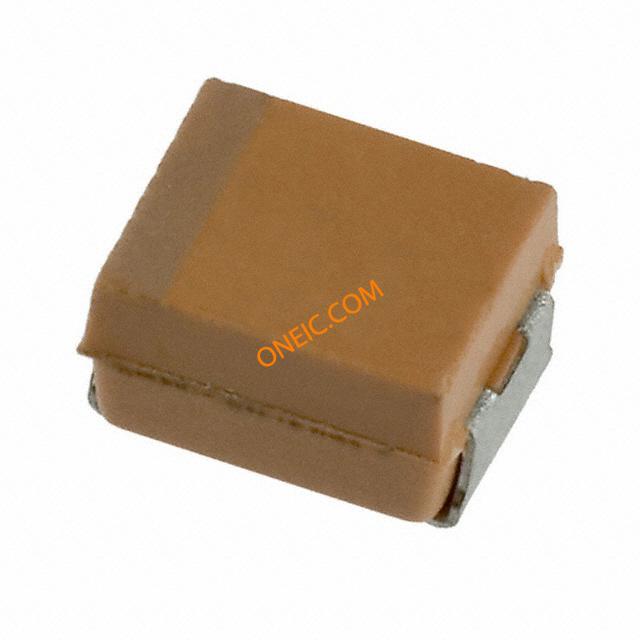

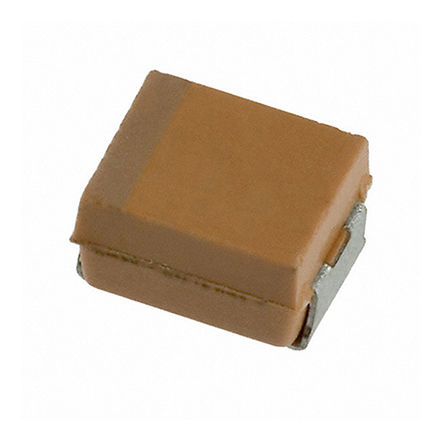

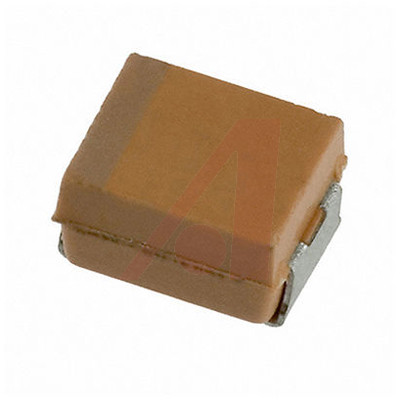

AVX NOJB336M006RWJ 电容, 33UF 6.3V B封装
Use this niobium oxide capacitor from in your power supply circuit design to lower the cost and increase functionality and reliability. It can withstand a voltage of 6.3 VDC. This niobium oxide capacitor has a maximum operating temperature of 105 °C. Its leakage current is 4 μA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its capacitance value is 33uF. It has a tolerance of 20%.
额定电压DC 6.3 V
电容 33 µF
等效串联电阻ESR 1.7 Ω
容差 ±20 %
纹波电流 0.245 A
工作温度Max 105 ℃
工作温度Min 105 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 3528-21
封装 1210

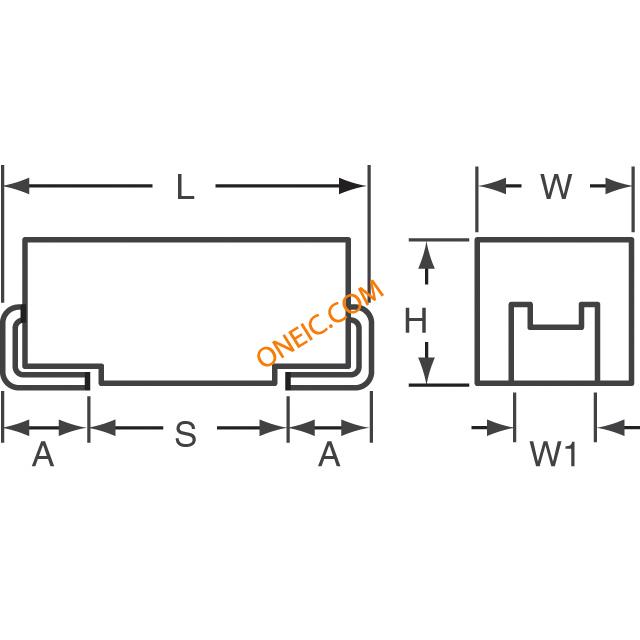

长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装公制 3528-21
封装 1210
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NOJB336M006RWJ AVX 艾维克斯 | 当前型号 | 当前型号 |
NOSB336M006R0600 艾维克斯 | 类似代替 | NOJB336M006RWJ和NOSB336M006R0600的区别 |
NOJB336M004RWJ 艾维克斯 | 类似代替 | NOJB336M006RWJ和NOJB336M004RWJ的区别 |
