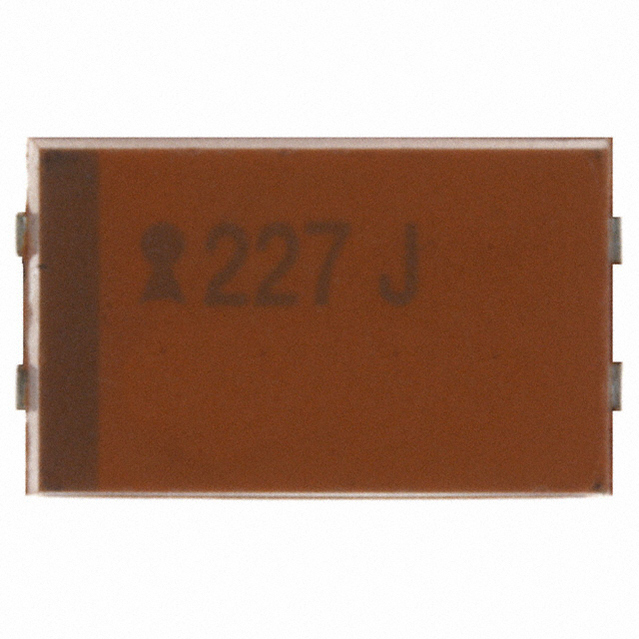

AVX NOJE227M006RWJ 电容,OXICAP 220UF 6.3V E封装
Known for having reliable performance and functionality, this niobium electrolytic capacitor from is great for coupling circuits. It can withstand a voltage of 6.3 VDC. This niobium oxide capacitor has a maximum operating temperature of 105 °C. Its leakage current is 26.4 μA. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 7.3 mm long, 4.1 mm tall and 4.3 mm deep. Its capacitance value is 220uF. It has a tolerance of 20%.
额定电压DC 6.30 V
电容 220 µF
等效串联电阻ESR 400 mΩ
容差 ±20 %
纹波电流 0.704 A
工作温度Max 105 ℃
工作温度Min 105 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-43
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4.1 mm
封装公制 7343-43
封装 7343
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
