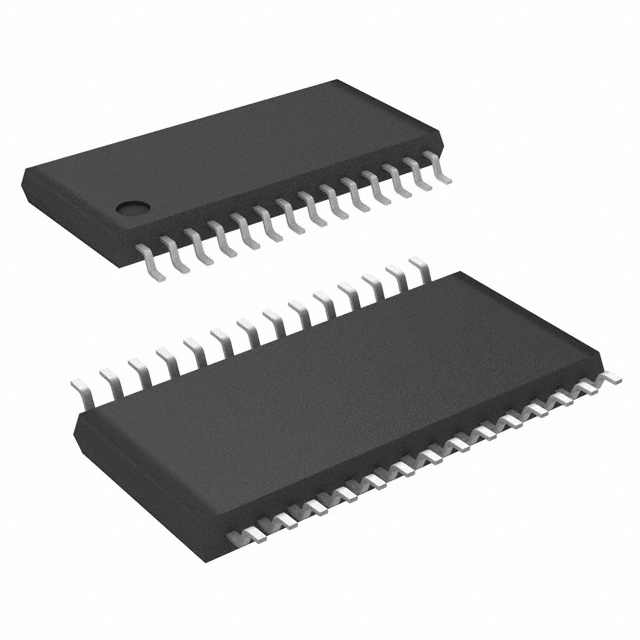

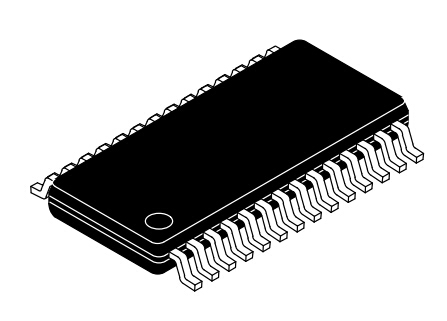

NB3N51044DTR2G

NB3N51044: 时钟产生器，3.3 V，晶振至 100 MHz / 125MHz，四路 HCSL / LVDS

The NB3N51044 is a precision, low phase noise clock generator that supports PCI Express and sRIO clock requirements. The device accepts a 25 MHz fundamental mode parallel resonant crystal or a 25 MHz single ended reference clock signal and generates four differential HCSL/LVDS outputs of 100 MHz or 125 MHz clock frequency based on frequency select input F_SEL. NB3N51044 is configurable to bypass the PLL from signal path using BYPASS, and provides the output frequency through the divider network. All clock outputs can be individually enabled / disabled through hardware input pins OE. In addition, device can be reset using Master Reset input pin MR_OE#.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Output frequency selection of 100 MHz or 125 MHz

|   |

.

PCIe and sRIO compliant

.

Typical Phase Jitter @ 125 MHz integrated 1.875 MHz to 20 MHz: 0.2 ps

|   |

.

Best in Class Jitter Performance

.

Typical Cycle-cycle Jitter @ 100 MHz 10k cycles: 20 ps

|   |

.

Best in Class Jitter Performance

.

Uses 25 MHz Fundamental Crystal or Reference Clock Input

|   |

.

Four Low Skew HCSL or LVDS Outputs

|   |

.

Individual OE Tri-states Output

|   |

.

Master Reset and BYPASS modes

|   |

.

PCIe Gen 1, Gen 2, Gen 3 Compliant

|   |

.

Operating Supply Voltage Range 3.3 V ± 5%

|   |

.

Industrial Temperature Rangeˆ-40°C to +85°C

|   |
