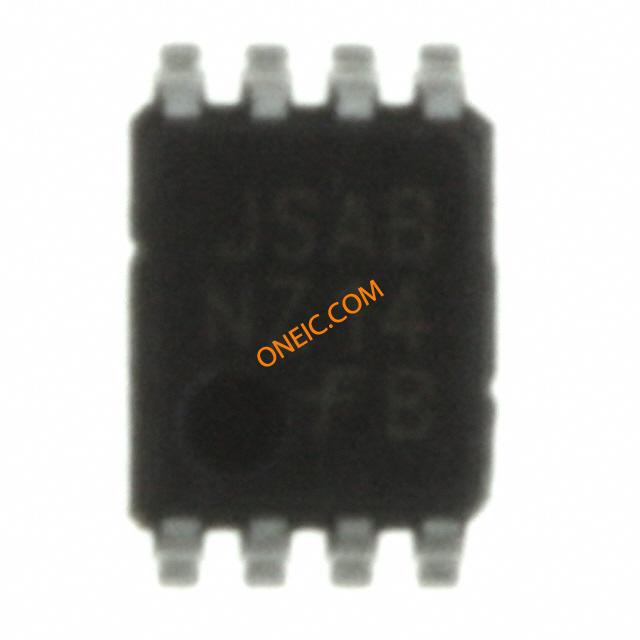

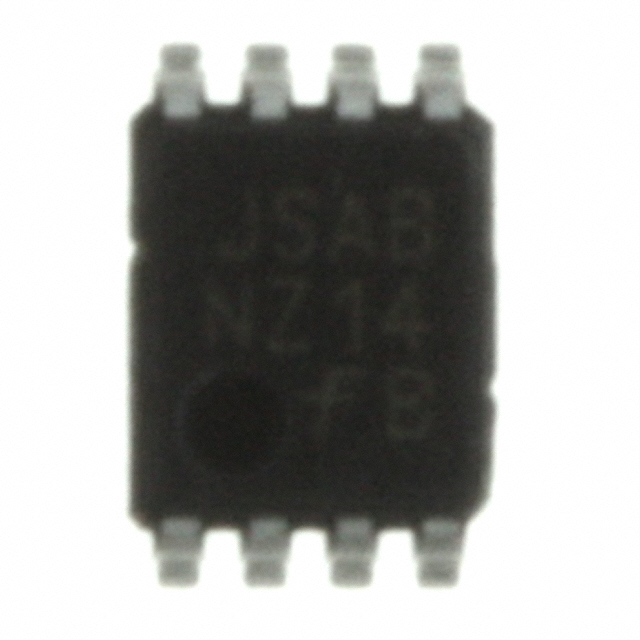

FAIRCHILD SEMICONDUCTOR NC7NZ14K8X 非门, 施密特触发, 1输入, 3门, 32 mA, 1.65V至5.5V, VSSOP-8

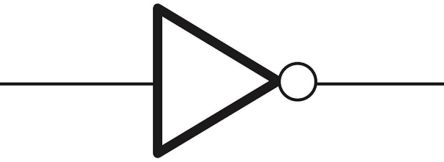

The inverting Schmitt trigger, developed by Semiconductor, is a great way to remove noise from an analog signal and essentially convert it into a digital signal. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.80 V
输出电流 32 mA
电路数 3
针脚数 8
逻辑门个数 3
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
长度 2.1 mm
宽度 2.40 mm
高度 0.8 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown

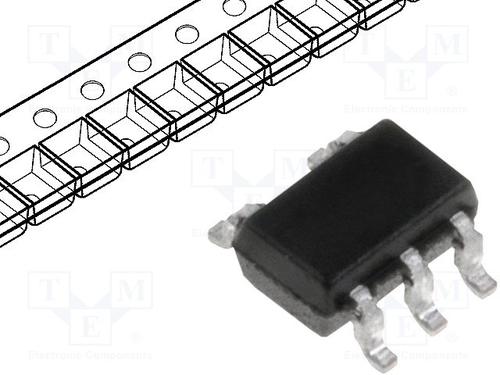

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NC7NZ14K8X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
NL37WZ14USG 安森美 | 功能相似 | NC7NZ14K8X和NL37WZ14USG的区别 |
SN74LVC3G14DCUR 德州仪器 | 功能相似 | NC7NZ14K8X和SN74LVC3G14DCUR的区别 |
SN74LVC3G14DCUT 德州仪器 | 功能相似 | NC7NZ14K8X和SN74LVC3G14DCUT的区别 |
