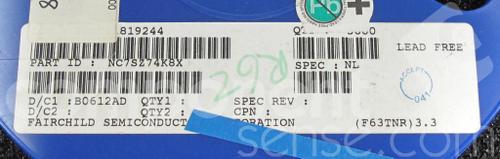

NC7SZ74K8X

FAIRCHILD SEMICONDUCTOR  NC7SZ74K8X  触发器, 预设和清零, 互补输出, 正沿, D, 2.6 ns, 200 MHz, 32 mA, US8, 8 引脚

The is a TinyLogic® single, D-type, CMOS Flip-Flop IC with preset and clear. This is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive, while maintaining low static power dissipation over a very broad VCC. The inputs and outputs are high impedance when VCC is 0V. Independent of VCC operating voltage. The signal level applied to the D input is transferred to the Q output during the positive-going transition of the CLK pulse.

.

tPD 2.6ns Typical into 50pF at 5V VCC ultra high speed

.

±24mA at 3V VCC High output drive

.

1.65 to 5.5V Broad VCC operating range

.

Power down high impedance inputs/output

.

Overvoltage tolerant inputs facilitate 5V to 3V translation

.

Patented noise/EMI reduction circuitry implemented

ESD sensitive device, take proper precaution while handling the device.
