ESD 保护### 瞬态电压抑制器,On Semiconductor
瞬态电压抑制器,用于为高速数据提供 ESD 保护
欧时:

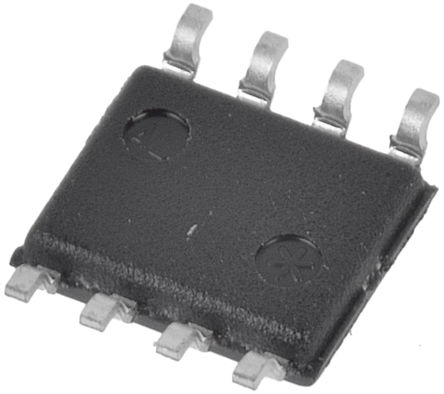

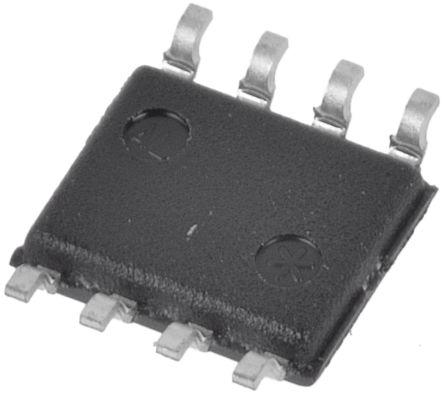

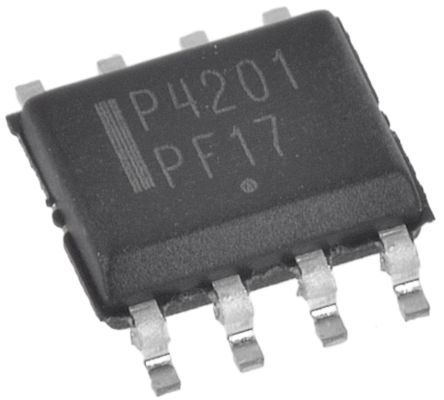

TVS 二极管阵列 ON Semiconductor NUP4201DR2G 单向, 500W, 25V, 8针 SOIC封装
得捷:
TVS DIODE 5VWM 25VC 8-SOIC
立创商城:
NUP4201DR2G
e络盟:
TVS二极管, NUP42 Series, 单向, 5 V, 25 V, SOIC, 8 引脚
艾睿:
This diode array NUP4201DR2G ESD protection device from ON Semiconductor protects against electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc kV. This device&s;s maximum clamping voltage is 25 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a quad configuration. Its capacitance value is 10 pF.
Allied Electronics:
NUP4201DR2G, Quad Uni-Directional TVS Diode Array, 500W, 8-Pin SOIC
安富利:
ESD Suppressor TVS 15KV 8-Pin SOIC N T/R
富昌:
NUP4201DR2 系列 6 V 500 W 低电容 TVS 用于 高速 Data 接口
Chip1Stop:
ESD Suppressor Diode Arrays 15KV 8-Pin SOIC N T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5V 8-Pin SOIC N T/R
Newark:
# ON SEMICONDUCTOR NUP4201DR2G TVS Diode, NUP42 Series, Unidirectional, 5 V, 25 V, SOIC, 8 Pins
力源芯城:
低电容四TVS阵列
Win Source:
TVS DIODE 5VWM 25VC 8SOIC
电容 10 pF
击穿电压 6 V
电路数 4
通道数 4
针脚数 8
耗散功率 500 W
钳位电压 25 V
测试电流 1 mA
最大反向击穿电压 6 V
脉冲峰值功率 500 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, 工业, Industrial, Imaging, Video & Vision, 通用, 通信与网络, 成像, 计算机和计算机周边, Computers & Computer Peripherals, 视频和目视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NUP4201DR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NUP4201DR2 安森美 | 完全替代 | NUP4201DR2G和NUP4201DR2的区别 |
