NIS 系列 12 V 92 uA 表面贴装 电子保险丝 - SOIC-8
电子保险丝 稳压器 - 2A 8-SOIC
得捷:
IC ELECTRONIC FUSE 8SOIC
贸泽:
Hot Swap Voltage Controllers PM ELCTRNC FUSE IN SO8
e络盟:
电子保险丝, 高压侧N沟道FET, 9 V至18 V电源, SOIC-8
艾睿:
This specially engineered positive high voltage NIS5112D2R2G hot swap controller IC from ON Semiconductor protects your circuit from abrupt changes in the power supply. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This hot swap controller has a minimum operating temperature of -40 °C and a maximum of 175 °C. This device has a minimum operating supply voltage of 9 V and a maximum of 18 V.
安富利:
Hot Swap Controller 1-CH 18V 8-Pin SOIC N T/R
富昌:
NIS Series 12 V 92 uA Surface Mount Electronic Fuse - SOIC-8
Chip1Stop:
Hot Swap Controller 1-CH 18V 8-Pin SOIC N T/R
Verical:
Hot Swap Controller 1-CH 18V 8-Pin SOIC N T/R
力源芯城:
高边智能热插拔电路保护器
Win Source:
Electronic Fuse Regulator 2A 8-SOIC
无卤素状态 Halogen Free
输出电流 2 A
电路数 1
通道数 1
针脚数 8
工作温度Max 175 ℃
工作温度Min -40 ℃
电源电压Max 18 V
电源电压Min 9 V
输入电压 9V ~ 18V
安装方式 Surface Mount
引脚数 8

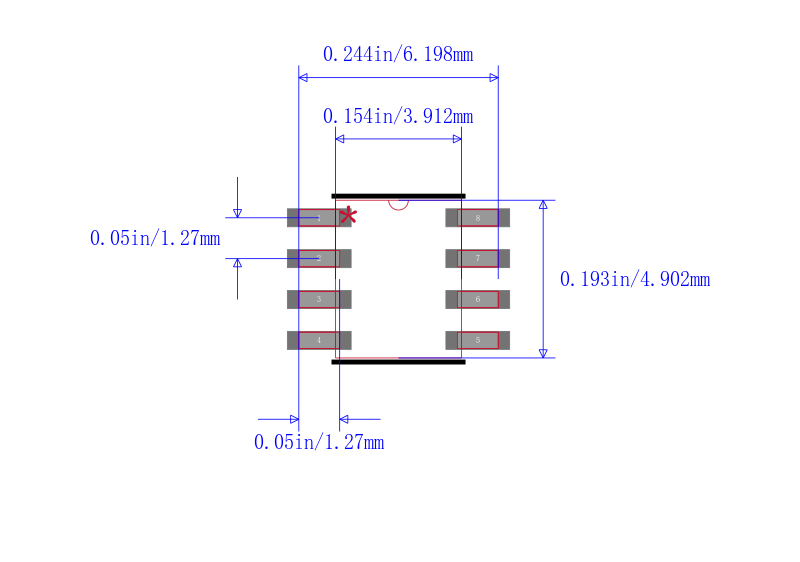

封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Hard Drives
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NIS5112D2R2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NIS5112D1R2G 安森美 | 完全替代 | NIS5112D2R2G和NIS5112D1R2G的区别 |
