NCV7430D20R2G

NCV7430: 汽车 LIN RGB LED 驱动器

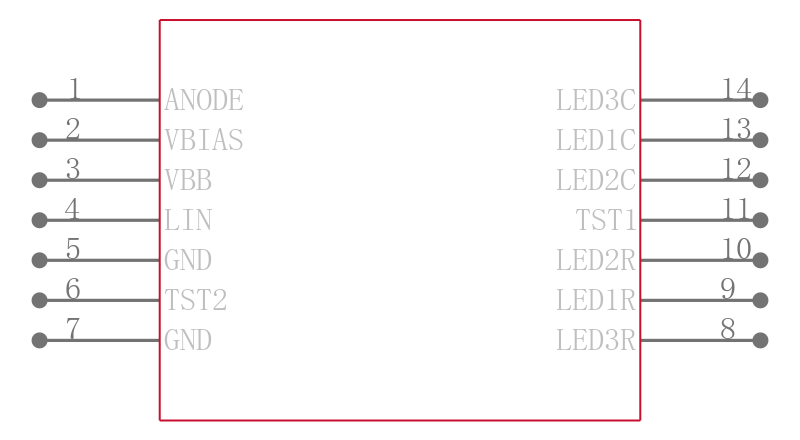

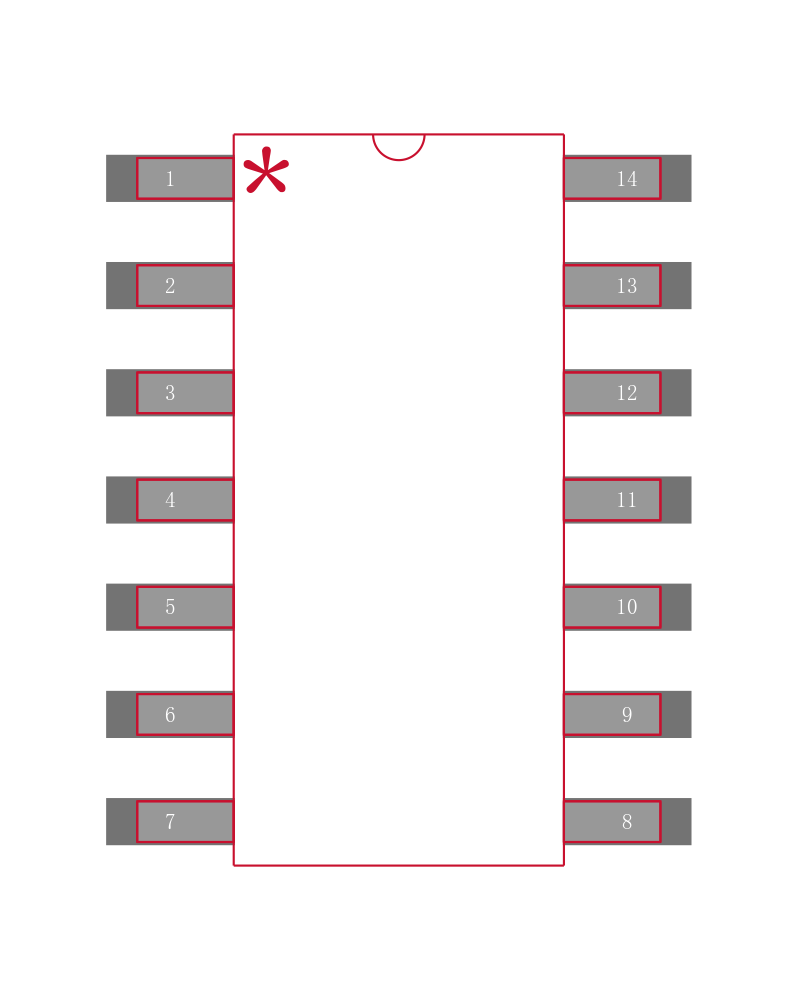

The NCV7430 is a single-chip RGB driver intended for dedicated multicolor LED applications. The RGB LED driver contains a LIN interface slave for parametric programming of LED color and intensity.The device receives instructions through the LIN bus and subsequently drives the LEDs independently.The NCV7430 acts as a slave on the LIN bus and the master can request specific status information parameter values and error flags. The LIN address of the NCV7430 can be programmed in the internal memory of the device.The NCV7430 is fully compatible with automotive requirements.

Features

---

 |

.

LED Driver

• 3 Independent LED Current Regulators

• LED Currents Adjustable with External Resistors

• Power Dissipation Option with External Ballast Transistor

.

Controller with One-Time-Programmable Memory OTP

• LED Modulation Controller for 3 LEDs

• Full LED Calibration Support

    - Internal LED Color Calibration via Matrix Calculation

    - Intensity Control linear or logarithmic

    - Dimming and Color Transition linear Function with Programmable Transition Time

.

LIN Interface

• LIN Physical Layer according to LIN 2.1/SAE J2602

• OTP-programmable Device Node Number

• OTP-programmable Group Address

• Diagnostics and Status Information

• LIN Bus Short-circuit Protection to Supply and Ground

.

Protection and Diagnostics

• Over-current Detection

• Short Circuit Detection to GND and VBB

• Open LED Detection

• High Temperature Warning and Shutdown

• Retry Mode on Error Detection

.

Power Saving

• Sleep Mode Supply Current 10 µA

• Compliant with 14V Automotive Systems

.

EMI Compatibility

LIN Bus Integrated Slope Control

EMC Reduced LED Modulation Mode

NCV Prefix for Automotive and Other applications Requiring Unique Site and Control Change Requirements; AECQ100

Qualified and PPAP Capable
