ON Semiconductor### 电压参考,ON Semiconductor
参考电压,可调,
得捷:
IC CTLR CV/CC SMPS 8-SOIC
立创商城:
Secondary-Side Controller, Constant Current, Constant Voltage
欧时:
ON Semiconductor NCS1002DR2G PWM 次级侧控制器 双, 40 mA输出, 8针 SOIC封装
贸泽:
Switching Controllers ANA DUAL OP AMP/VOLT REF
e络盟:
二次侧控制器, 3 V至32 V, SOIC-8
艾睿:
This constant voltage/ constant current secondary side NCS1002DR2G secondary side PWM controller from ON Semiconductor will control your system through its own load. This secondary side synchronous controller has 2 outputs. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 3 V and a maximum of 32 V. This secondary side synchronous controller has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
Secondary Side PWM Cntrlr Constant Voltage/ Constant Current Secondary Side Controller 8-Pin SOIC N T/R
Chip1Stop:
Constant Voltage/ Constant Current Secondary Side Controller 2-OUT 8-Pin SOIC N T/R
Verical:
AC to DC Switching Converter SMPS Controller T/R 8-Pin SOIC N
Newark:
# ON SEMICONDUCTOR NCS1002DR2G SECONDARY SIDE CONTROLLER, DUAL, SOIC-8
力源芯城:
恒压/恒流次级侧控制器
Win Source:
IC CTLR CV/CC SMPS 8-SOIC
DeviceMart:
IC CTLR CV/CC SMPS 8-SOIC
电源电压DC 3.00V min
无卤素状态 Halogen Free
输出接口数 2
输出电压 28 V
输出电流 40 mA
供电电流 200 µA
针脚数 8
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 3V ~ 32V
电源电压Max 32 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8

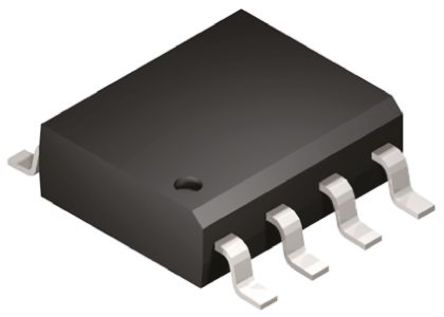

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.75 mm
封装 SOIC-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 次级侧控制器, Voltage regulation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
