ON SEMICONDUCTOR NCP1396BDR2G 芯片, 电源控制器 谐振模式
The is a Resonant Mode Controller that offers everything needed to build a reliable and rugged resonant mode power supply. Its unique architecture includes a 500kHz Voltage Controlled Oscillator whose control mode brings flexibility when an O-Ring function is a necessity, e.g. in multiple feedback paths implementations. Its proprietary high-voltage technology, the controller welcomes a bootstrapped MOSFET driver for half-bridge applications accepting bulk voltages up to 600V. Protections featuring various reaction times, e.g. immediate shutdown or timer-based event, brown-out, broken optocoupler detection etc., contribute to a safer converter design, without engendering additional circuitry complexity. An adjustable dead time also helps lowering the shoot-through current contribution as the switching frequency increases.
频率 500 kHz
电源电压DC 8.50V min
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 12.0 V
输出电流 1000 A
针脚数 16
上升时间 40 ns
开关频率 50kHz ~ 500kHz
拓扑结构 Push-Pull
占空比 50 %
最大占空比 52 %
下降时间 20 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 10.5V ~ 20V
电源电压Max 20 V
电源电压Min 8.5 V
安装方式 Surface Mount
引脚数 16

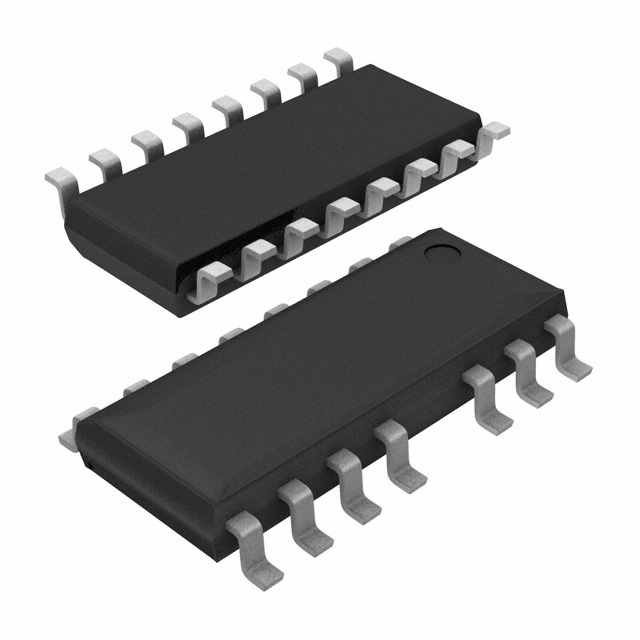

封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, 工业, 医用, High Power AC/DC Adapters, Industrial, Offline Battery Chargers, Industrial and Medical Power Sources, Computers & Computer Peripherals, FLat Panel Display Power Converters, Medical, 信号处理, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NCP1396BDR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NCV1063AD100R2G 安森美 | 类似代替 | NCP1396BDR2G和NCV1063AD100R2G的区别 |
