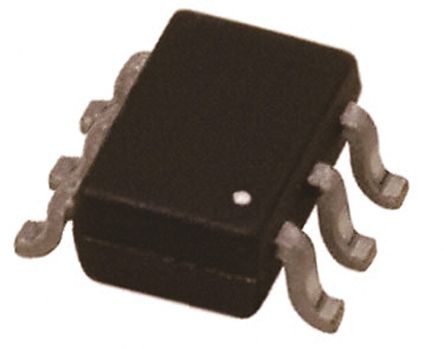

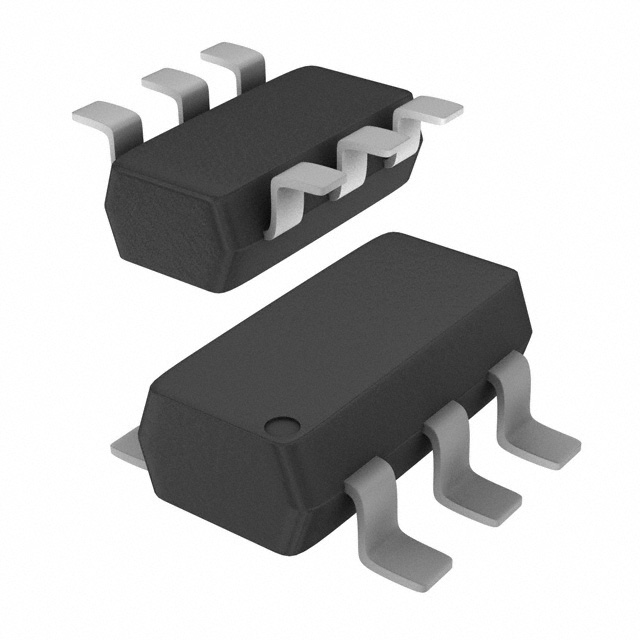

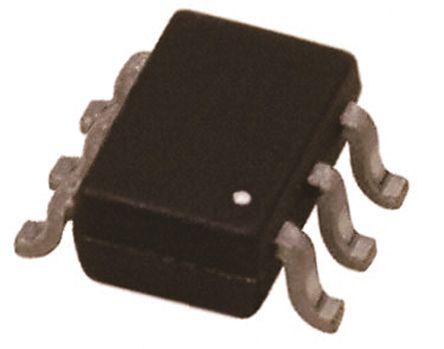

ON SEMICONDUCTOR NUP2114UCMR6T1G TVS二极管, AEC-Q305, AEC-Q101 NUP2114系列, 单向, 5 V, 12 V, TSOP, 6 引脚
ESD 保护器,On Semiconductor
欧时:
TVS 二极管阵列 ON Semiconductor NUP2114UCMR6T1G 单向, 10V, 6针 TSOP封装
得捷:
TVS DIODE 5VWM 10VC 6TSOP
立创商城:
NUP2114UCMR6T1G
贸泽:
ESD 抑制器/TVS 二极管 LOW CAP TVS ARRAY
艾睿:
This tvs NUP2114UCMR6T1G ESD protection device from ON Semiconductor is ideal for protecting your electronic components and circuits from electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc/16@HBM/0.4@MM kV. This device&s;s maximum clamping voltage is 10Typ V. This ESD diode has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a triple configuration.
Allied Electronics:
NUP2114UCMR6T1G, Triple Uni-DirectionalTVS Diode Array, 6-Pin TSOP
安富利:
ESD Suppressor TVS 15KV 6-Pin TSOP T/R
Chip1Stop:
ESD Suppressor TVS 15kV Automotive 6-Pin TSOP T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5V 6-Pin TSOP T/R
Newark:
# ON SEMICONDUCTOR NUP2114UCMR6T1G TVS Diode, NUP2114 Series, Unidirectional, 5 V, 10 V, TSOP, 6 Pins
力源芯城:
二线低电容ESD阵列
Win Source:
TVS DIODE 5VWM 10VC 6TSOP
工作电压 5 V
电容 1 pF
无卤素状态 Halogen Free
击穿电压 7.5 V
针脚数 6
钳位电压 10 V
测试电流 1 mA
最大反向击穿电压 7.5 V
最小反向击穿电压 5.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
长度 3.1 mm
宽度 1.7 mm
高度 1 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 汽车级, Communications & Networking, 工业, Industrial, 车用, 通信与网络, Automotive, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NUP2114UCMR6T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NUP2201MR6T1G 安森美 | 类似代替 | NUP2114UCMR6T1G和NUP2201MR6T1G的区别 |
NUP4201MR6T1G 安森美 | 类似代替 | NUP2114UCMR6T1G和NUP4201MR6T1G的区别 |
