OMAPL138BZWTA3

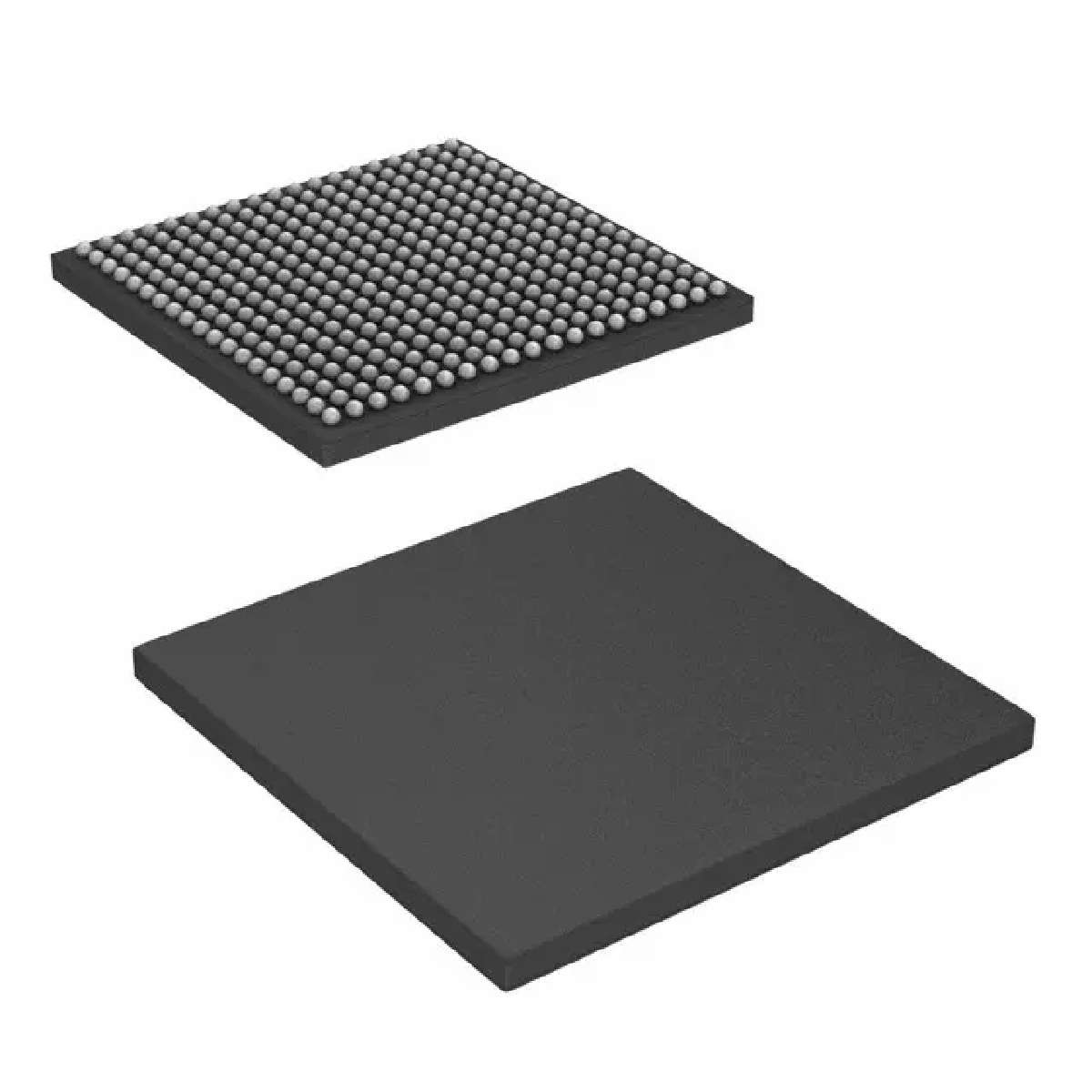

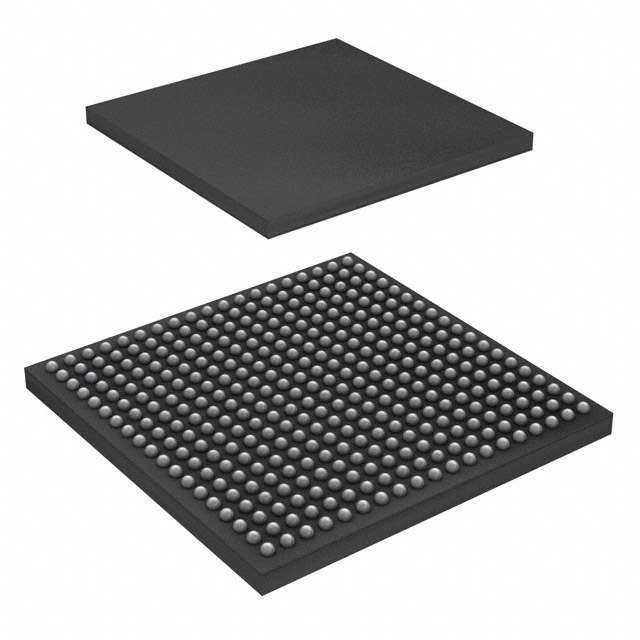

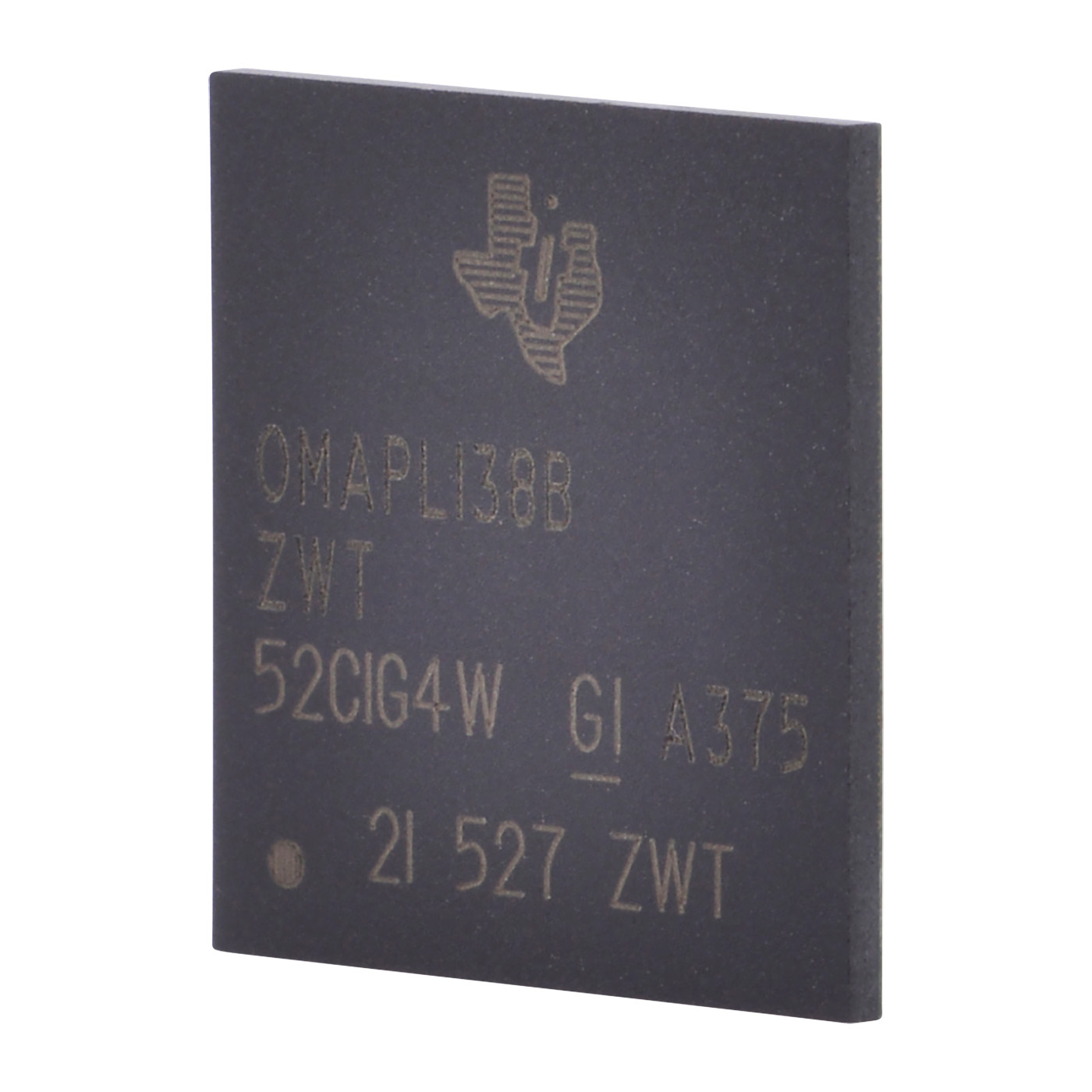

TEXAS INSTRUMENTS  OMAPL138BZWTA3.  芯片, 微处理器, ARM9, 456MHZ, NFBGA-361

The OMAP-L1X series DSP+ARM® low-power Applications Processor based on an ARM926EJ-S and a C674x DSP core. This processor provides significantly lower power than other members of the TMS320C6000™ platform of DSPs. The device enables original-equipment manufacturers OEMs and original-design manufacturers ODMs to quickly bring to market devices with robust operating systems, rich user interfaces and high processor performance through the maximum flexibility of a fully integrated, mixed processor solution. The dual-core architecture of the device provides benefits of both DSP and reduced instruction set computer RISC technologies, incorporating a high-performance TMS320C674x DSP core and an ARM926EJ-S core. The ARM926EJ-S is a 32-bit RISC processor core that performs 32- or 16-bit instructions and processes 32-, 16- or 8-bit data. The core uses pipelining so that all parts of the processor and memory system can operate continuously.

.

375- and 456MHz ARM926EJ-S™ RISC MPU

.

ARM926EJ-S core - 32- and 16-bit Thumb® instructions and DSP instruction extensions

.

16kB Instruction cache and data cache

.

8kB RAM vector table

.

64kB ROM

.

C674x instruction set feature - Superset of the C67x+ and C64x+ ISAs

.

C674x two-level cache memory architecture

.

Enhanced direct memory access controller 3 EDMA3

.

TMS320C674x floating-point VLIW DSP core

.

Supports up to four SP additions per clock and four DP additions every two clocks

.

Two multiply functional units

.

Hardware support for modulo loop operation

.

Protected mode operation

.

Exceptions support for error detection and program redirection

.

Software support - DSP BIOS™, chip support library and DSP library

.

128kB RAM shared memory

.

Three configurable 16550-type UART modules

.

LCD controller

.

Two serial peripheral interfaces SPIs each with multiple chip selects

.

One host-port interface HPI with 16-bit-wide Muxed address and data bus for high bandwidth
