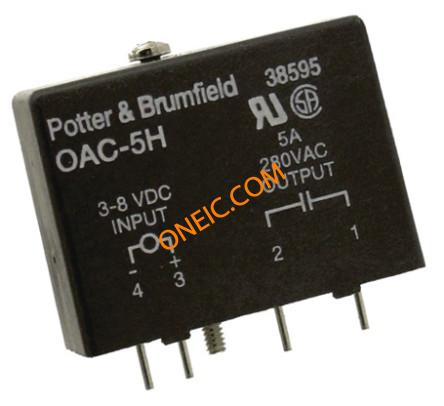

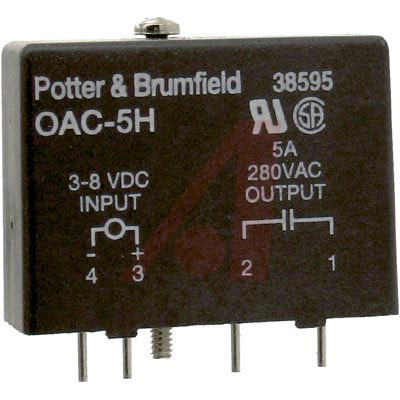

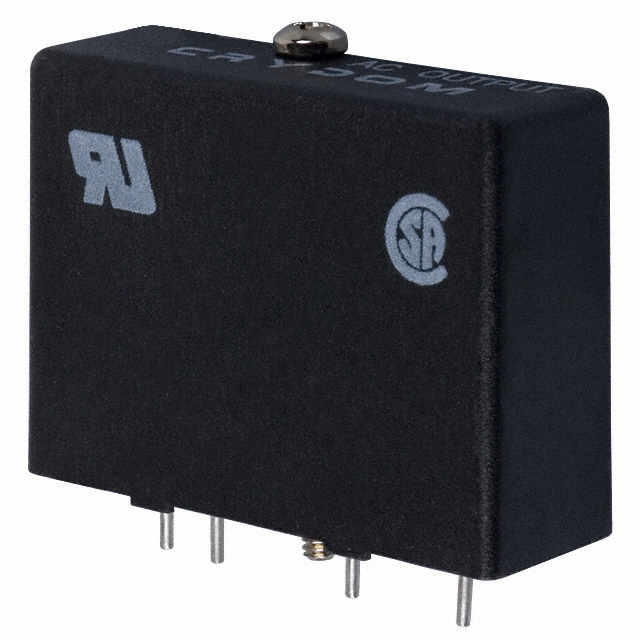

I/O Module Relays Output Module 5VDC 20mA 4000Vrms Thru-Hole
A reliable interface between microprocessor- or computer-based control systems and external input devices and loads, these photo-isolated modules feature excellent isolation and transient immunity. On modules of the same voltage type, AC or DC, the output of the output modules is compatible with the input of the input modules, making them ideal for series operation. Modules are color-coded and packaged in industry standard plug-in enclosure. Units interchange easily without disturbing wiring. UL recognized, CSA certified. Order mounting boards separately below.
电源电压DC 3.00V min
额定电流 5 A
绝缘电阻 ≥100MΩ @500VDC
输入电压DC 5.00 V
输出电压 24VAC ~ 280VAC
输出电流 5 A
触点类型 SPST-NO
通道数 1
输入电流 20 mA
隔离电压 4000 VAC
输入电压Max 8 VDC
输入电压Min 3 VDC
输入电流Min 20 mA
模拟输出数 1
负载电流Max 5 A
工作温度Max 80 ℃
工作温度Min -30 ℃
电源电压 8 VDC
输入电压 5 VDC
安装方式 Through Hole
封装 Module

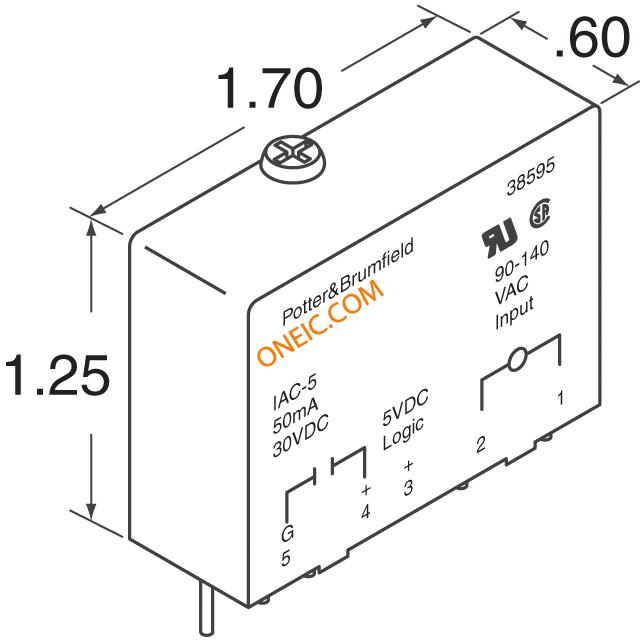

长度 43.2 mm
宽度 15.2 mm
高度 31.8 mm
封装 Module
外壳颜色 Black
颜色 Black
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410020
