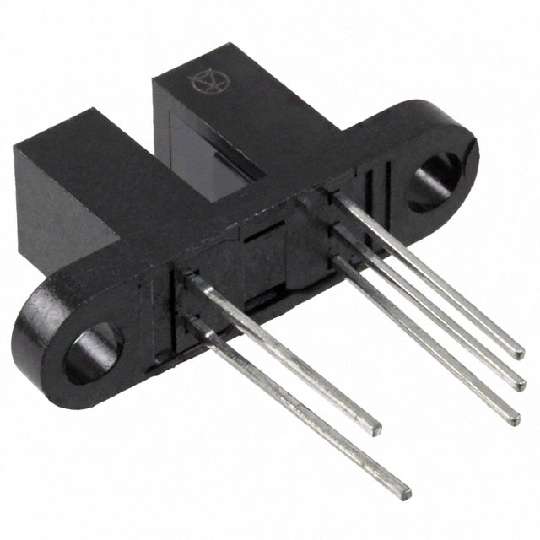

OPTEK TECHNOLOGY OPB961T51 透射光中断, 开路集电极, 通孔安装, 3.18 mm, 1.27 mm, 40 mA, 2 V
The OPB960 series non-contact Photologic® slotted Optical Switch with covered apertures, PCB leads and totem-pole buffer logic and output driver. Building from a standard housing with a 0.125-inch 3.18mm wide slot, the user can specify output logic state, output driver circuit, aperture width, aperture surface and mounting tab locations. The device body is an opaque plastic which minimizes sensitivity to both visible and near-infrared external light sources which may impact operation. Aperture width choices provide different optical resolution for motion sensing.
工作电压 18.0 V
输出电压 35 V
供电电流 15 mA
通道数 1
正向电压 1.7 V
波长 890 nm
输入电流 20 mA
峰值波长 890 nm
耗散功率 300 mW
上升时间 70 ns
正向电流 40 mA
输出电压Max 13.9 V
正向电流Max 40 mA
下降时间 70 ns
下降时间Max 70 ns
上升时间Max 70 ns
工作温度Max 70 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压 4.75V ~ 5.25V
安装方式 Through Hole
引脚数 5
封装 PCB Mount
长度 24.63 mm
宽度 6.35 mm
高度 10.8 mm
封装 PCB Mount
工作温度 -40℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 Signal Processing, 工业, 车用, Industrial, Sensing & Instrumentation, 传感与仪器, Automotive, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPB961T51 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB961T55 TT Electronics/Optek Technology | 完全替代 | OPB961T51和OPB961T55的区别 |
OPB961T11 TT Electronics/Optek Technology | 完全替代 | OPB961T51和OPB961T11的区别 |
OPB461T11 TT Electronics/Optek Technology | 功能相似 | OPB961T51和OPB461T11的区别 |
