TEXAS INSTRUMENTS OPA551FAKTWTG3 运算放大器, 单路, 3 MHz, 1个放大器, 15 V/µs, ± 4V 至 ± 30V, TO-263, 7 引脚
高电压和高电流
Texas Instruments 功率运算放大器具有高电流输出,适用于驱动低阻抗和艰难的负载。 与通用运算放大器相比,这些设备中的很多均可在较高的电源电压下操作。 典型应用包括:驱动 MOSFET 和功率晶体管、桥式放大器、电动机速度控制器、伺服放大器、电源和仪器系统中使用。
得捷:
IC OPAMP GP 1 CIRC DDPAK/TO263-7
立创商城:
OPA551FAKTWTG3
欧时:
### 高电压和高电流运算放大器Texas Instruments 功率运算放大器具有高电流输出,适用于驱动低阻抗和艰难的负载。 与通用运算放大器相比,这些设备中的很多均可在较高的电源电压下操作。 典型应用包括:驱动 MOSFET 和功率晶体管、桥式放大器、电动机速度控制器、伺服放大器、电源和仪器系统中使用。### 运算放大器,Texas Instruments
贸泽:
Operational Amplifiers - Op Amps High-Volt High-Crnt Oper Amplifier
e络盟:
TEXAS INSTRUMENTS OPA551FAKTWTG3 运算放大器, 单路, 3 MHz, 1个放大器, 15 V/µs, ± 4V 至 ± 30V, TO-263, 7 引脚
艾睿:
OP Amp Single GP ±30V/60V 8-Pin7+Tab TO-263 T/R
安富利:
The OPA551 is low cost op amps with highvoltage 60V and high-current 200mA capability.The OPA551 is unity-gain stable and features high slew rate 15Vµs and wide bandwidth 3MHz. This is suitable for telephony, audio, servo, and test applications.These laser-trimmed, monolithic integrated circuits provide excellent low-level accuracy along with high output swing. High performance is maintained as the amplifier swings to its specified limits.The OPA551 is internally protected against over-temperature conditions and current overloads. The thermal shutdown indicator “flag” provides a current output to alert the user when thermal shutdown has occurred.The OPA551 is available in DIP-8 and SO-8 packages, as well as a DDPAK-7 surface-mount plastic power package. They are specified for operation over the extended industrial temperature range, –40°C to +125°C.
Verical:
OP Amp Single GP ±30V/60V 8-Pin7+Tab TO-263 T/R
Newark:
# TEXAS INSTRUMENTS OPA551FAKTWTG3 Operational Amplifier, Single, 1 Amplifier, 3 MHz, 15 V/µs, ± 4V to ± 30V, TO-263, 7 Pins
德州仪器TI:
High-current 380mA Typ, high-voltage 60V, operational amplifier
电源电压DC 3.00 V
供电电流 7 mA
电路数 1
通道数 1
针脚数 7
共模抑制比 92 dB
输入补偿漂移 7.00 µV/K
带宽 3 MHz
转换速率 15.0 V/μs
增益频宽积 3 MHz
输入补偿电压 1 mV
输入偏置电流 20 pA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 3 MHz
共模抑制比Min 92 dB
电源电压Max 30 V
安装方式 Surface Mount
引脚数 7

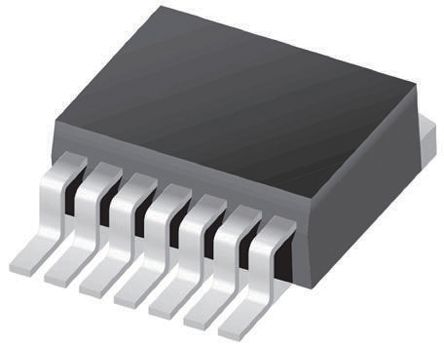

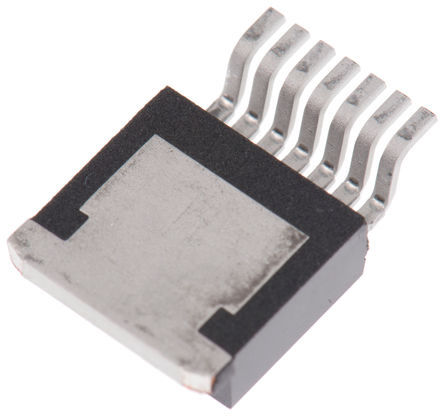

封装 TO-263-7
长度 10.1 mm
宽度 8.89 mm
高度 4.44 mm
封装 TO-263-7
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA551FAKTWTG3 TI 德州仪器 | 当前型号 | 当前型号 |
OPA551FA/500 德州仪器 | 完全替代 | OPA551FAKTWTG3和OPA551FA/500的区别 |
OPA551PA 德州仪器 | 功能相似 | OPA551FAKTWTG3和OPA551PA的区别 |
OPA551FAKTWT 德州仪器 | 功能相似 | OPA551FAKTWTG3和OPA551FAKTWT的区别 |
