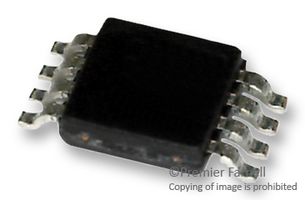

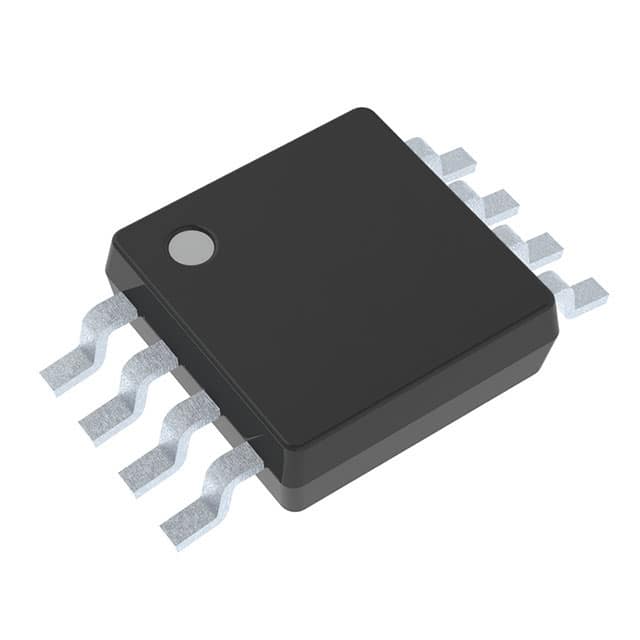

OPA350EA/250G4

TEXAS INSTRUMENTS  OPA350EA/250G4  运算放大器, 单路, 38 MHz, 1个放大器, 22 V/µs, 2.7V 至 5.5V, MSOP, 8 引脚

The is a single-supply Operational Amplifier optimized for low voltage. Low noise as well as audio and general purpose applications. Single, dual and quad versions have identical specifications for maximum design flexibility. The OPA350 series operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV below ground and 300mV above the positive supply. Output voltage swing is to within 10mV of the supply rails with a 10k load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.

.

Rail-to-rail input/output

.

0.0006% Low THD + noise

.

Unity-gain stable

.

Green product and no Sb/Br

This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
