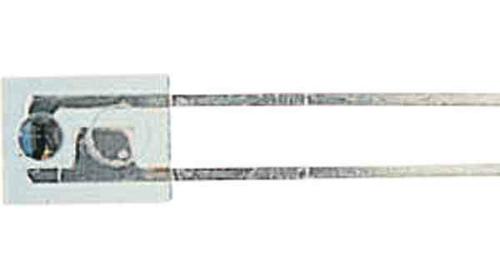

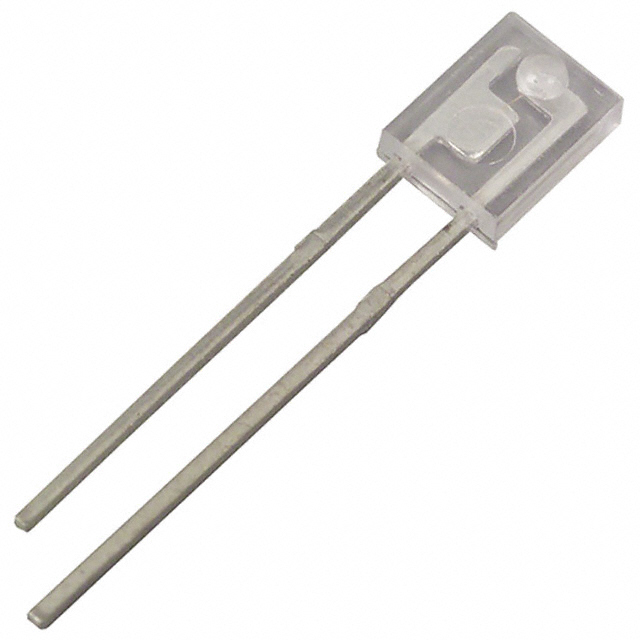

OPTEK TECHNOLOGY OP550B 光电三极管, 侧视式
The is a Silicon NPN Phototransistor moulded in an epoxy package with a wide receiving angle that provides relatively even reception over a large area. The OP550 has an external lens in a clear epoxy package. This device is 100% production tested using infrared light for close correlation with OPTEK"s GaAs and GaAIAs emitters. This sensor is mechanically and spectrally matched to the OP140, OP142, OP145, OP240 and OP245 series of infrared emitting diodes.
- .
- Sensitivity level with min. max
- .
- Wide receiving angle
- .
- Side-looking package for space limited applications
- .
- Ideal for PCB mounting
针脚数 2
波长 935 nm
视角 60°
极性 NPN
耗散功率 100 mW
功耗 100 mW
击穿电压集电极-发射极 30 V
额定功率Max 100 mW
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 Side Looking
高度 5.84 mm
脚长度 12.7 mm
封装 Side Looking
材质 Silicon
工作温度 -40℃ ~ 100℃ TA
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, Communications & Networking, Portable Devices, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
