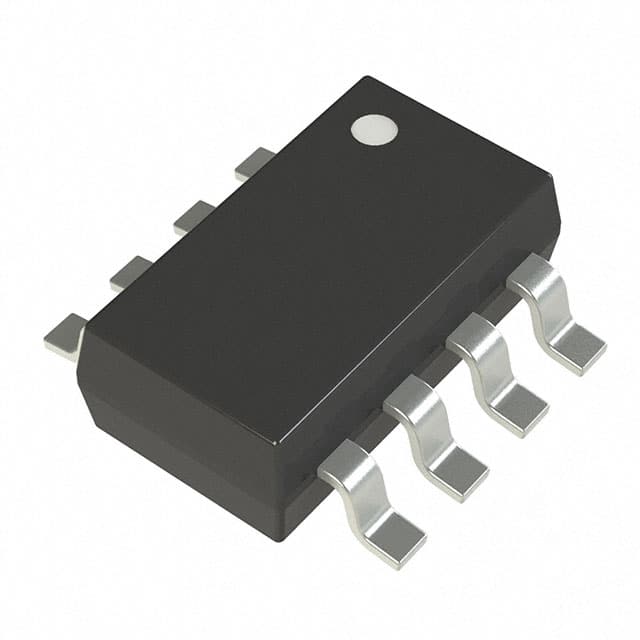

TEXAS INSTRUMENTS OPA2369AIDCNTG4 运算放大器, 双路, 2个放大器, 0.005 V/µs, 1.8V 至 5.5V, SOT-23, 8 引脚
The is an ultra-low-power zero-crossover Operational Amplifier with rail-to-rail input and output. It is designed for battery-powered applications. The OPAx369 operates on a supply voltage as low as 1.8V and has true rail-to-rail operation that makes it useful for a wide range of applications. The zero-crossover feature resolves the problem of input crossover distortion that becomes very prominent in low voltage <3V, rail-to-rail input applications.
- .
- 700nA/channel nanoPOWER
- .
- 250µV Low offset voltage
- .
- 0.4µV/°C Low offset drift
- .
- 114dB DC precision CMRR
- .
- 106dB DC precision PSRR
- .
- 134dB DC precision AOL
- .
- Green product and no Sb/Br
电源电压DC 5.50 V
供电电流 700 nA
电路数 2
通道数 2
针脚数 8
共模抑制比 100dB ~ 114dB
输入补偿漂移 400 nV/K
带宽 12.0 kHz
转换速率 5.00 mV/μs
增益频宽积 12 kHz
输入补偿电压 250 µV
输入偏置电流 10 pA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 0.012 MHz
共模抑制比Min 100 dB
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 8
封装 SOT-23-8
长度 2.9 mm
宽度 1.63 mm
高度 1.1 mm
封装 SOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA2369AIDCNTG4 TI 德州仪器 | 当前型号 | 当前型号 |
OPA2369AIDCNT 德州仪器 | 类似代替 | OPA2369AIDCNTG4和OPA2369AIDCNT的区别 |
OPA2369AIDCNR 德州仪器 | 类似代替 | OPA2369AIDCNTG4和OPA2369AIDCNR的区别 |
OPA2369AIDCNRG4 德州仪器 | 类似代替 | OPA2369AIDCNTG4和OPA2369AIDCNRG4的区别 |
