OPA355NA/250G4

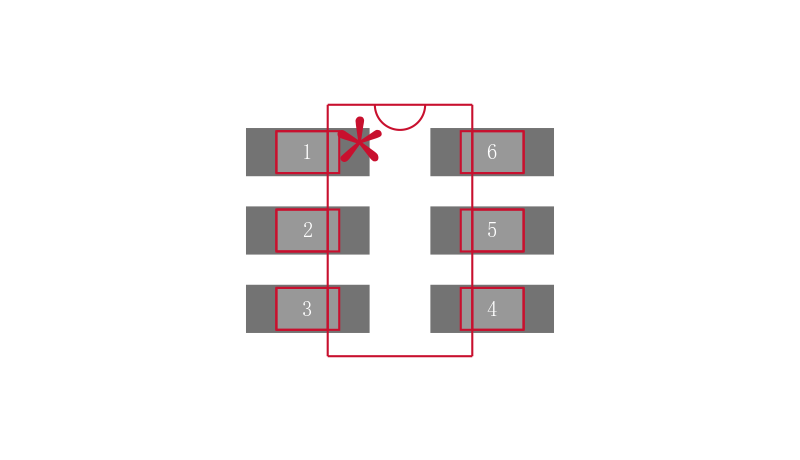

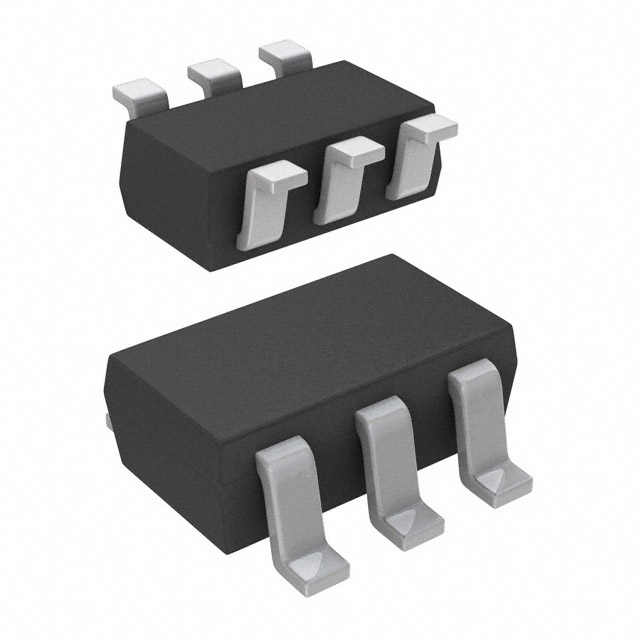

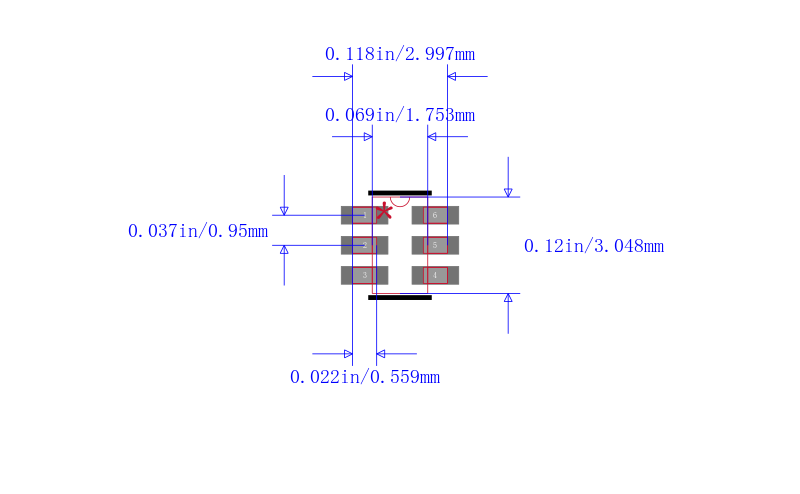

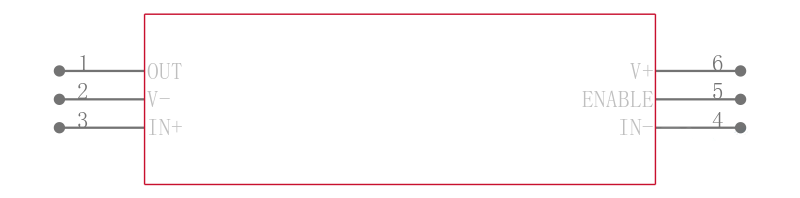

TEXAS INSTRUMENTS  OPA355NA/250G4  运算放大器, 单路, 200 MHz, 1个放大器, 360 V/µs, 2.5V 至 5.5V, SOT-23, 6 引脚

The is a high-speed voltage-feedback CMOS Operational Amplifier with digital shutdown enable function. The OPA355 is unity-gain stable and can drive large output currents. This feature provides power savings during idle periods and places the output in a high-impedance state to support output multiplexing. Common-mode input range for the OPA355 extends 100mV below ground and up to 1.5V from V+. The output swing is within 100mV of the rails, supporting wide dynamic range.

.

Input range includes ground

.

Rail-to-rail output within 100mV

.

Thermal shutdown function

.

Excellent video performance - 0.02% diff gain, 0.05° diff phase and 0.1dB gain flatness of 75MHz

.

5.8nV/√Hz Low noise

.

3pA Low input bias current

.

3.4µA Low shutdown current

.

100ns/30ns Enable/disable time

.

Green product and no Sb/Br
