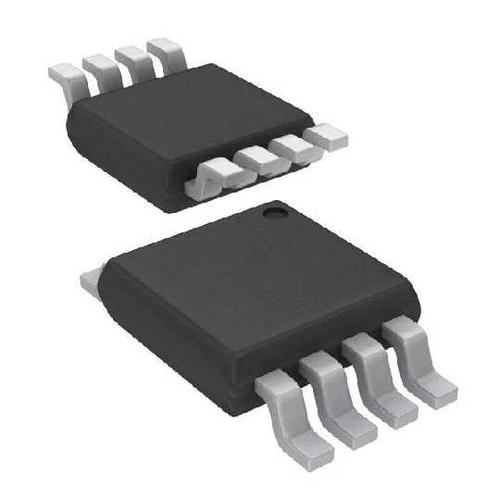

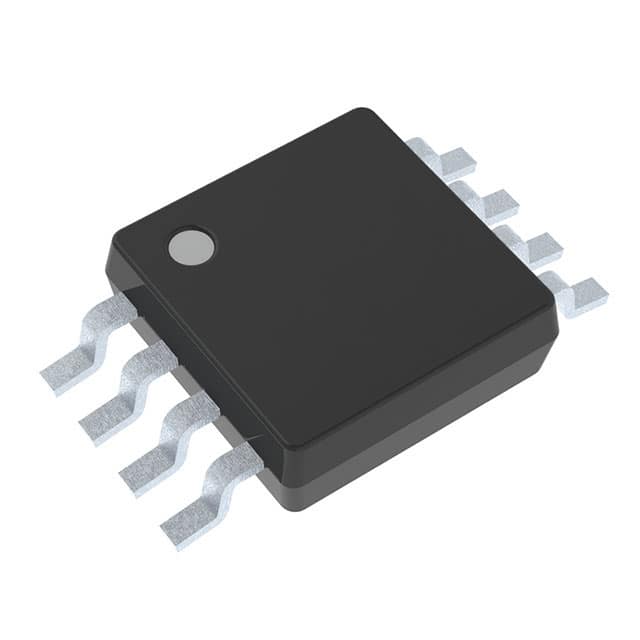

TEXAS INSTRUMENTS OPA2335AIDGKT 运算放大器, 单路, 2 MHz, 1个放大器, 1.6 V/µs, ± 1.35V 至 ± 2.75V, MSOP, 8 引脚
The is a CMOS Operational Amplifier uses auto-zeroing techniques to simultaneously provide very low offset voltage 5µV maximum and near zero drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing. This op amp is optimized for low-voltage, single-supply operation. Under logic control, the amplifier can be switched from normal operation to a standby current of 2µA. When the enable pin is connected high, the amplifier is active. Connecting enable low disables the amplifier and places the output in a high impedance state.
电源电压DC 7.00 V
供电电流 570 µA
电路数 2
通道数 2
针脚数 8
共模抑制比 110 dB
输入补偿漂移 20.0 nV/K
带宽 2 MHz
转换速率 1.60 V/μs
增益频宽积 2 MHz
输入补偿电压 1 µV
输入偏置电流 70 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 2 MHz
共模抑制比Min 110 dB
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
宽度 3 mm
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 医用, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA2335AIDGKT TI 德州仪器 | 当前型号 | 当前型号 |
OPA2335AIDGKR 德州仪器 | 完全替代 | OPA2335AIDGKT和OPA2335AIDGKR的区别 |
OPA2336E/250 德州仪器 | 类似代替 | OPA2335AIDGKT和OPA2336E/250的区别 |
OPA2335AIDGKTG4 德州仪器 | 类似代替 | OPA2335AIDGKT和OPA2335AIDGKTG4的区别 |
