TEXAS INSTRUMENTS OPA354AIDBVTG4 运算放大器, 单路, 250 MHz, 1个放大器, 150 V/µs, 2.5V 至 5.5V, SOT-23, 5 引脚
The is a CMOS single Operational Amplifier designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents. The OPA354 series operational amplifier are optimized for operation on single supplies. Common-mode input range extends beyond the supplies. The output swing is within 100mV of the rails, supporting wide dynamic range.
- .
- Rail-to-rail input/output
- .
- 100mA High output current
- .
- Excellent video performance
- .
- 3pA Low input bias current
- .
- 4.9mA Quiescent current
- .
- Thermal shutdown
- .
- Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
电源电压DC 5.50 V
供电电流 4.9 mA
电路数 1
通道数 1
针脚数 5
共模抑制比 56 dB
输入补偿漂移 4.00 µV/K
带宽 250 MHz
转换速率 150 V/μs
增益频宽积 100 MHz
输入补偿电压 8 mV
输入偏置电流 3 pA
可用通道 S, D, Q
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 250 MHz
增益带宽 100 MHz
共模抑制比Min 56 dB
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount

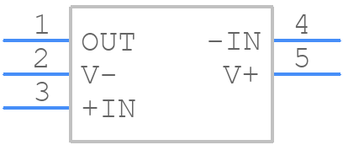

引脚数 5
封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA354AIDBVTG4 TI 德州仪器 | 当前型号 | 当前型号 |
OPA354AIDBVT 德州仪器 | 类似代替 | OPA354AIDBVTG4和OPA354AIDBVT的区别 |
OPA354AIDBVR 德州仪器 | 类似代替 | OPA354AIDBVTG4和OPA354AIDBVR的区别 |
OPA354AIDBVRG4 德州仪器 | 类似代替 | OPA354AIDBVTG4和OPA354AIDBVRG4的区别 |
