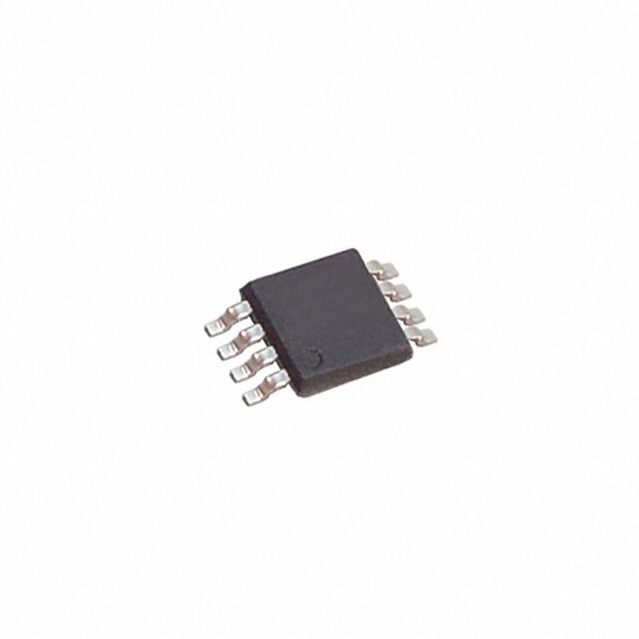

OPA2336EA/250G4

TEXAS INSTRUMENTS  OPA2336EA/250G4  运算放大器, 双路, 100 kHz, 2个放大器, 0.03 V/µs, 2.3V 至 5.5V, MSOP, 8 引脚

The is a dual MicroPower CMOS Operational Amplifier designed for battery-powered applications. It operate on a single supply with operation as low as 2.1V. The output is rail-to-rail and swings to within 3mV of the supplies with a 100k load. The common-mode range extends to the negative supply-ideal for single-supply applications. Dual version has identical specifications for maximum design flexibility. In addition to small size and low quiescent current 20µA/amplifier, it features low offset voltage 125µV maximum, low input bias current 1pA and high open-loop gain 115dB. Dual design feature completely independent circuitry for lowest crosstalk and freedom from interaction.

.

Rail-to-rail output within 3mV

.

20µA/amplifier IQ MicroPOWER

.

1.5µV/°C Typical offset drift

.

86dB Typical CMRR

.

Green product and no Sb/Br
