OPA2677IDDAR

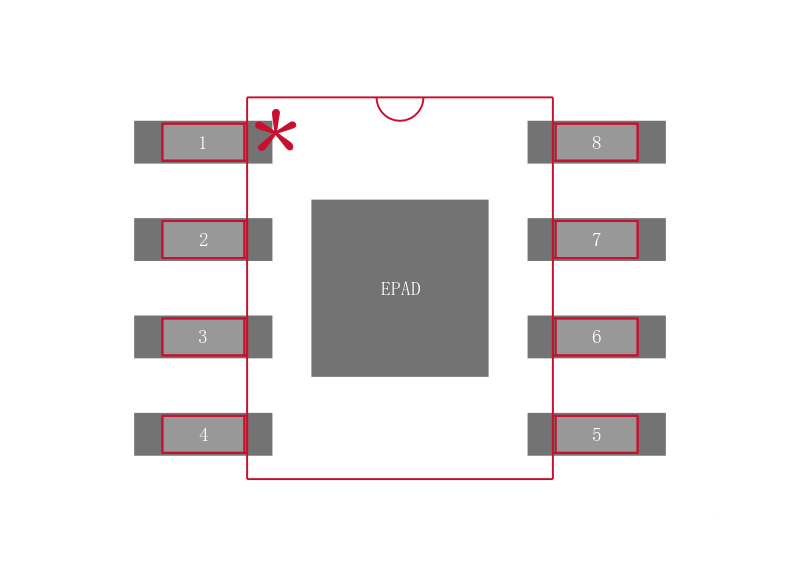

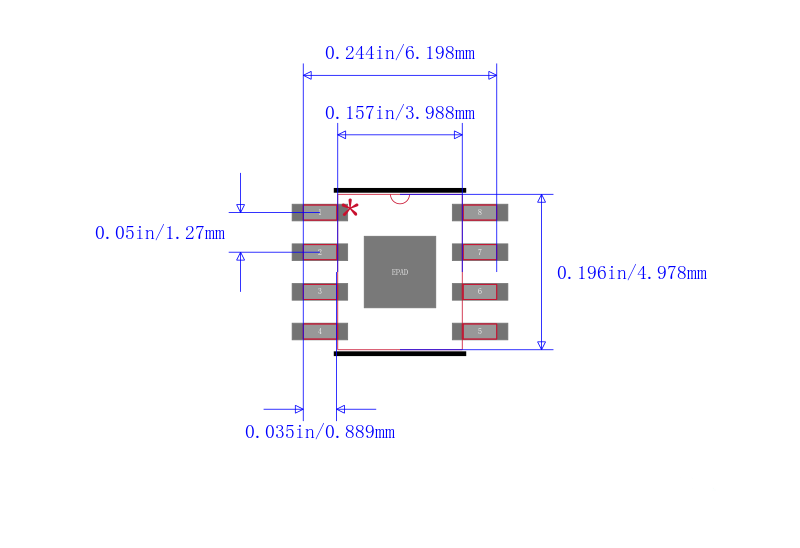

SpeedPlus™ 双路、宽带、高输出电流运算放大器和 DSL/PLC 线路驱动器 8-SO PowerPAD -40 to 85

**DESCRIPON**

The OPA2677 provides the high output current and low distortion required in emerging xDSL and Power Line Modem driver applications. Operating on a single +12V supply, the OPA2677 consumes a low 9mA/ch quiescent current to deliver a very high 500mA output current. This output current supports even the most demanding ADSL CPE requirements with > 380mA minimum output current +25°C minimum value with low harmonic distortion. Differential driver applications will deliver < –85dBc distortion at the peak upstream power levels of full rate ADSL. The high 200MHz bandwidth will also support the most demanding VDSL line driver requirements.

**FEATURES**

.

*WIDEBAND +12V OPERATION: 200MHz G = +4**

.

*UNITY-GAIN STABLE: 220MHz G = +1**

.

*HIGH OUTPUT CURRENT: 500mA**

.

*OUTPUT VOLTAGE SWING: **±**5V**

.

*HIGH SLEW RATE: 1800V/**µ**s**

.

*LOW SUPPLY CURRENT: 18mA**

.

*FLEXIBLE SUPPLY RANGE:**

**  +5 to +12V Single Supply**

.

*2.5 to **±**6V Dual Supplies**

**APPLICATIONS**

.

*xDSL LINE DRIVER**

.

*CABLE MODEM DRIVER**

.

*MATCHED I/Q CHANNEL AMPLIFIER**

.

*BROADBAND VIDEO LINE DRIVER**

.

*ARB LINE DRIVER**

.

*POWER LINE MODEM**

.

*HIGH CAP LOAD DRIVER**
