OPAMPEVM-SOT23

TEXAS INSTRUMENTS  OPAMPEVM-SOT23.  评估模块, SOT23

The is a universal evaluation module for single/dual op amps without Shutdown in MSOP/SOIC/SOT-23 Packages. The evaluation module board design allows many different circuits to be constructed easily and quickly. The board has four separate circuit development areas that can be snapped apart and separated. Two of the areas are specifically designed for SOT23-5 package op amp, the other two areas support SOIC-8 and MSOP-8 type packages.

.

General purpose blank circuit board that simplifies evaluation of surface mount op amps

.

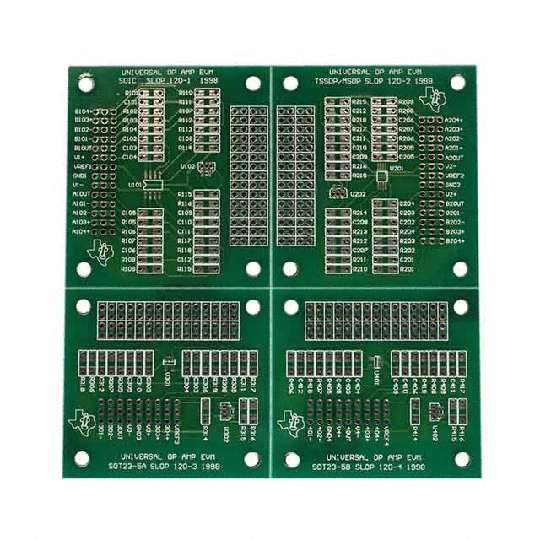

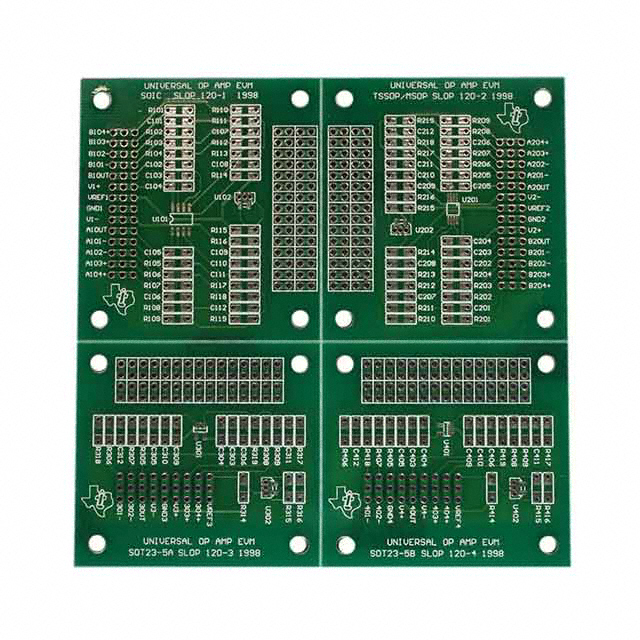

The EVM board has four circuit development areas

.

If a specific area is desired, it can be separated from the others by breaking along the score lines

.

Circuit layout in each area supports an op amp package, voltage reference, and ancillary devices

.

Areas 100 and 200 are for dual op amps in the SOIC and TSSOP/MSOP packages

.

Areas 300 and 400 are for SOT23-5 single operational amplifier packages
