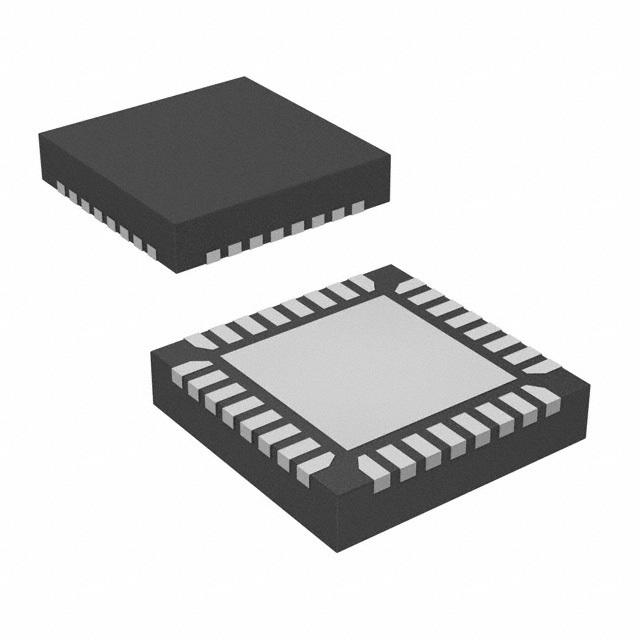

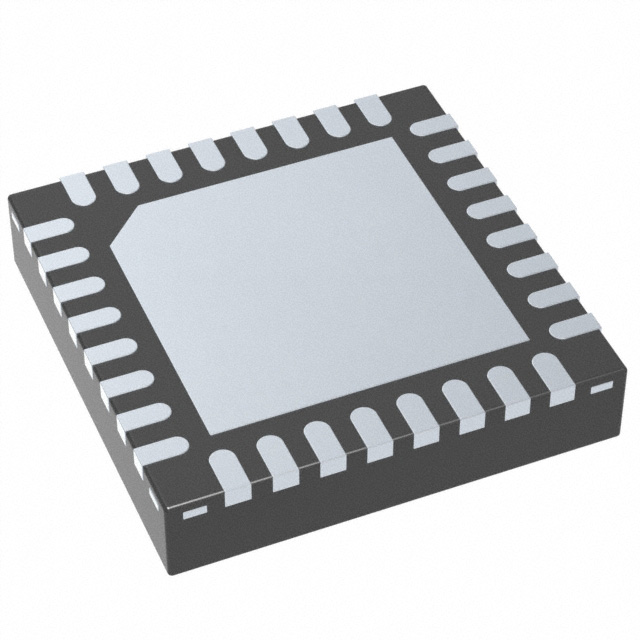

具有双 CDR 和集成式调制器驱动器的 11.7Gbps 收发器 32-VQFN -40 to 100
* Dual CDR with 9.80-11.7 Gbps Reference-Freeoperation * 2-Wire Digital Interface with Integrated DACs and ADC for Control and Diagnostic Management * Output Polarity Select for TX and RX * Programmable Jitter Transfer Bandwidth * Electrical and optical Loopback. * CDR Bypass Mode for Low Data Rate operation * Integrated Modulator Driver with output Amplitude up to 2 VPP Single-ended and Bias Current up to 150 mA Source * Automatic Power Control APC Loop with Selectable Monitor PD Range * Programmable TX Input Equalizer * TX Cross-Point Adjust and De-Emphasis * Includes Laser Safety Features * Integrated Limiting Amplifier with Programmable LOS Threshold * Adjustable RX Equalization and Input Threshold * Programmable RX output Voltage and Deemphasis * Power Supply Monitor and Temperature Sensor * Single 2.5-V Supply * -40°C to 100°Coperation * Surface Mount 4 mm × 4 mm 32-Pin QFN Package with 0.4 mm Pitch
