OPA348AIDBVR

1MHz,45uA轨对轨CMOS运算放大器

The OPAx348 series of amplifiers are single-supply, low-power, CMOS operational amplifiers. Featuring an extended bandwidth of 1 MHz, and a supply current of 45 µA, the OPAx348 series is useful for low-power applications on single supplies of 2.1 V to 5.5 V.

A low supply current of 45 µA and an input bias current of 0.5 pA, makes the OPAx348 series an optimal candidate for low-power applications such as smoke detectors and other high-impedance sensors.

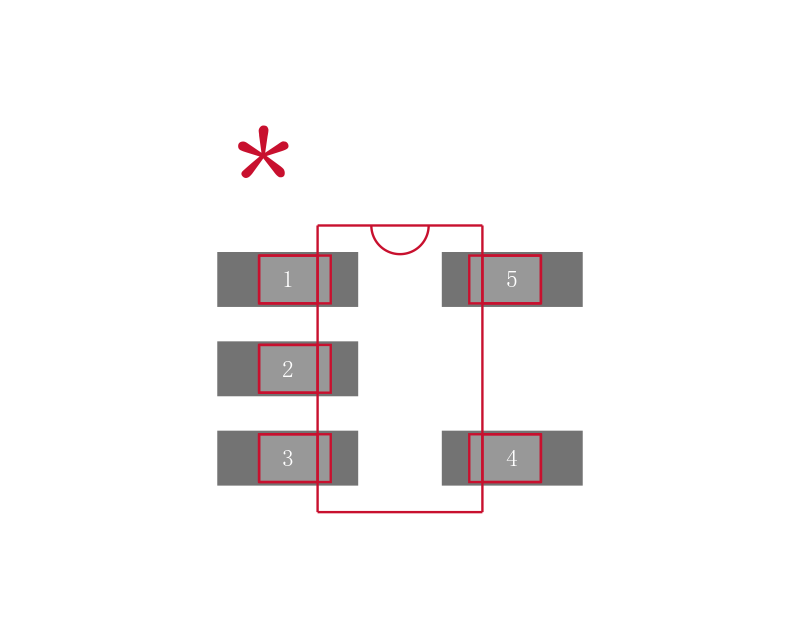

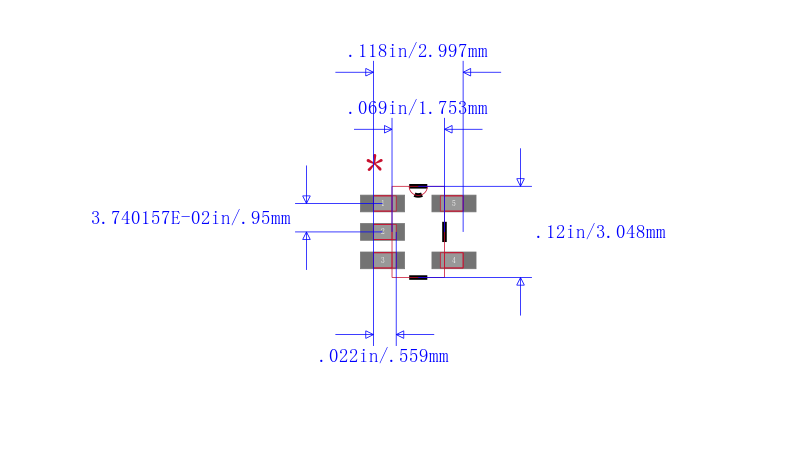

The OPA348 is available in the miniature 5-pin SC70 SOT, 5-pin SOT-23 SOT, and 8-pin SO SOIC packages. The OPA2348 is available in 8-pin SOT-23 SOT and 8-pin SO SOIC packages, and the OPA4348 is offered in space-saving 14-pin TSSOP and 14-pin SO SOIC packages. The extended temperature range of –40°C to +125°C over all supply voltages offers design flexibility.
