OPA171AQDBVRQ1

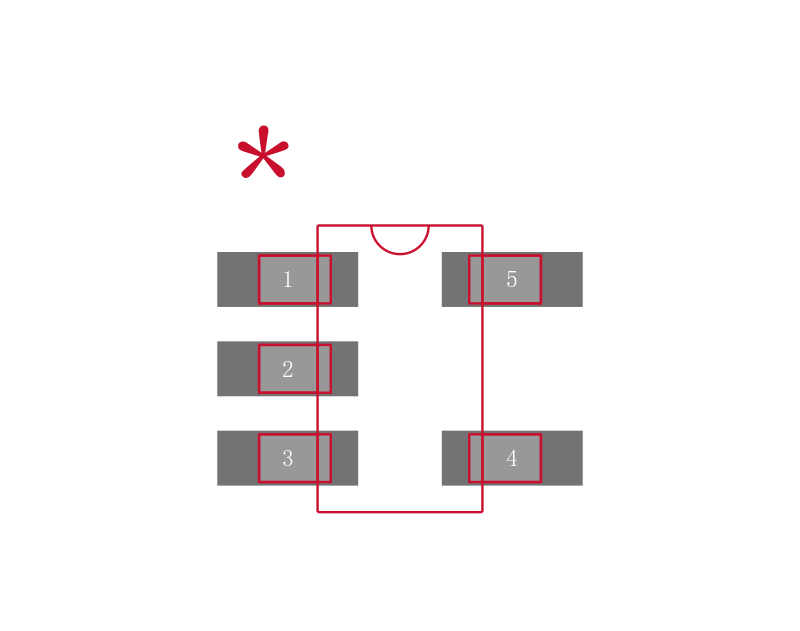

TEXAS INSTRUMENTS  OPA171AQDBVRQ1  运算放大器, 3 MHz, 1个放大器, 1.5 V/µs, 4.5V 至 36V, ± 2.25V 至 ± 18V, SOT-23, 5 引脚

The is a low power general purpose Operational Amplifier with rail-to-rail output. It offers low offset, drift and bandwidth with low quiescent current. The single version has identical specifications for maximum design flexibility. Input signals beyond the supply rails do not cause phase reversal. The OPAx171-Q1 family of device is stable with capacitive loads up to 300pF. The input can operate 100mV below the negative rail and within 2V of the top rail during normal operation. The device can operate with full rail-to-rail input 100mV beyond the top rail, but with reduced performance within 2V of the top rail.

.

RFI filtered inputs

.

Input range includes the negative supply

.

Input range operates to positive supply

.

14nV/√Hz Low noise

.

±0.3µV/°C Typical low offset drift

.

475µA/amplifier Low quiescent current

.

120dB Typical high common-mode rejection

.

8pA Low input bias current

.

Green product and no Sb/Br
