微功耗单电源双运算放大器
This general purpose amplifier OP amp from Texas Instruments takes a differential voltage input and outputs an amplified voltage signal. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.1 V and maximum of ±18 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with bipolar technology. This device uses one or two power supplies. It has 2 channels per chip.
供电电流 40 µA
电路数 2
通道数 2
共模抑制比 72 dB
输入补偿漂移 4.00 µV/K
带宽 430 kHz
转换速率 100 mV/μs
增益频宽积 430 kHz
输入补偿电压 700 µV
输入偏置电流 10 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 430 kHz
共模抑制比Min 72 dB
电源电压Max 36 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 8

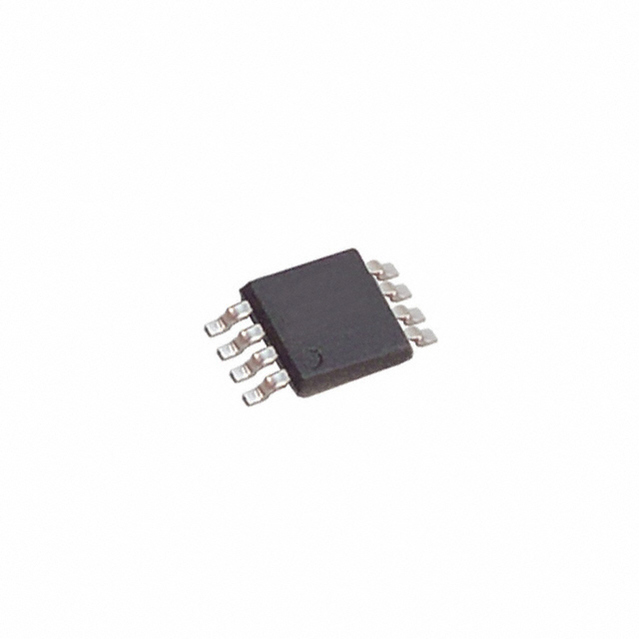

封装 VSSOP-8
宽度 3 mm
高度 0.95 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA2244EA/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
OPA2244EA/250 德州仪器 | 类似代替 | OPA2244EA/2K5和OPA2244EA/250的区别 |
OPA2244EA/250G4 德州仪器 | 类似代替 | OPA2244EA/2K5和OPA2244EA/250G4的区别 |
OPA2244EA/2K5G4 德州仪器 | 类似代替 | OPA2244EA/2K5和OPA2244EA/2K5G4的区别 |
