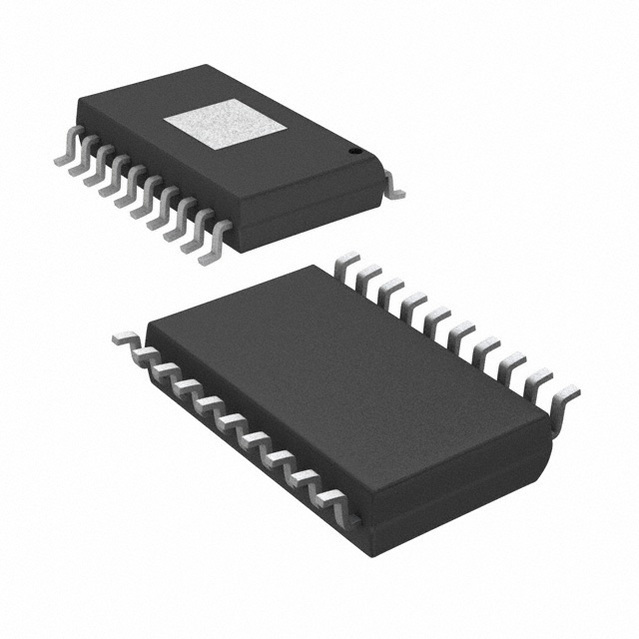

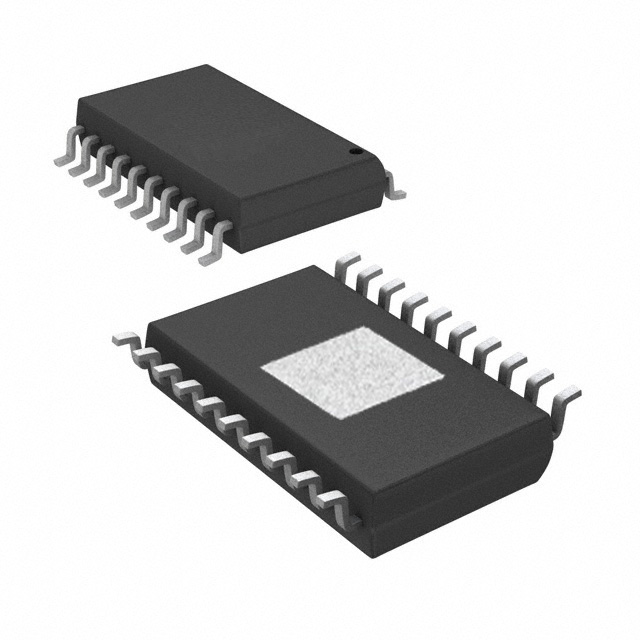

运算放大器, 轨至轨输入, 1个放大器, 1.2 MHz, 1.2 V/µs, 2.7V 至 5.5V, SO PowerPAD, 20 引脚
DESCRIPON
The OPA569 is a low-cost, high-current, operational amplifier designed for driving a wide variety of loads while operating on low-voltage supplies. It operates from either single or dual supplies for design flexibility and has rail-to-rail swing on the input and output. Typical output swing is within 150mV of the supply rails, with output current of 2A. Output swing closer to the rails is achievable with lighter loads.
The OPA569 is unity-gain stable, has low dc errors, is easy to use, and free from the phase inversion problems found in some power amplifiers. High performance is maintained at voltage swings near the output rails.
The OPA569 provides an accurate user-selected current limit that is set with an external resistor, or digitally adjusted via a Digital-to-Analog Converter.
The OPA569 output can be independently disabled using the Enable pin, saving power and protecting the load.
FEATURES
● HIGH OUTPUT CURRENT: 2A
● OUTPUT SWINGS TO: 150mV of Rails with IO = 2A
● THERMAL PROTECTION
● ADJUSTABLE CURRENT LIMIT
● TWO FLAGS: Current Limit and Temperature Warning
● LOW SUPPLY VOLTAGE OPERATION: 2.7V to 5.5V
● SHUTDOWN FUNCTION WITH OUTPUT DISABLE
● SMALL POWER PACKAGE: SO-20 PowerPAD™
APPLICATIONS
● THERMOELECTRIC COOLER DRIVER
● LASER DIODE PUMP DRIVER
● VALVE, ACTUATOR DRIVER
● SYNCHRO, SERVO DRIVER
● TRANSDUCER EXCITATION
● GENERAL LINEAR POWER BOOSTER FOR OP AMPS
● PARALLELING OPTION FOR HIGHER CURRENT APPLICATIONS
输出电流 2 A
供电电流 9 mA
电路数 1
通道数 1
针脚数 20
共模抑制比 60 dB
输入补偿漂移 1.30 µV/K
带宽 1.2 MHz
转换速率 1.20 V/μs
增益频宽积 1.2 MHz
输入补偿电压 2 mV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 1.2 MHz
共模抑制比Min 60 dB
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 20
封装 HSOP-20

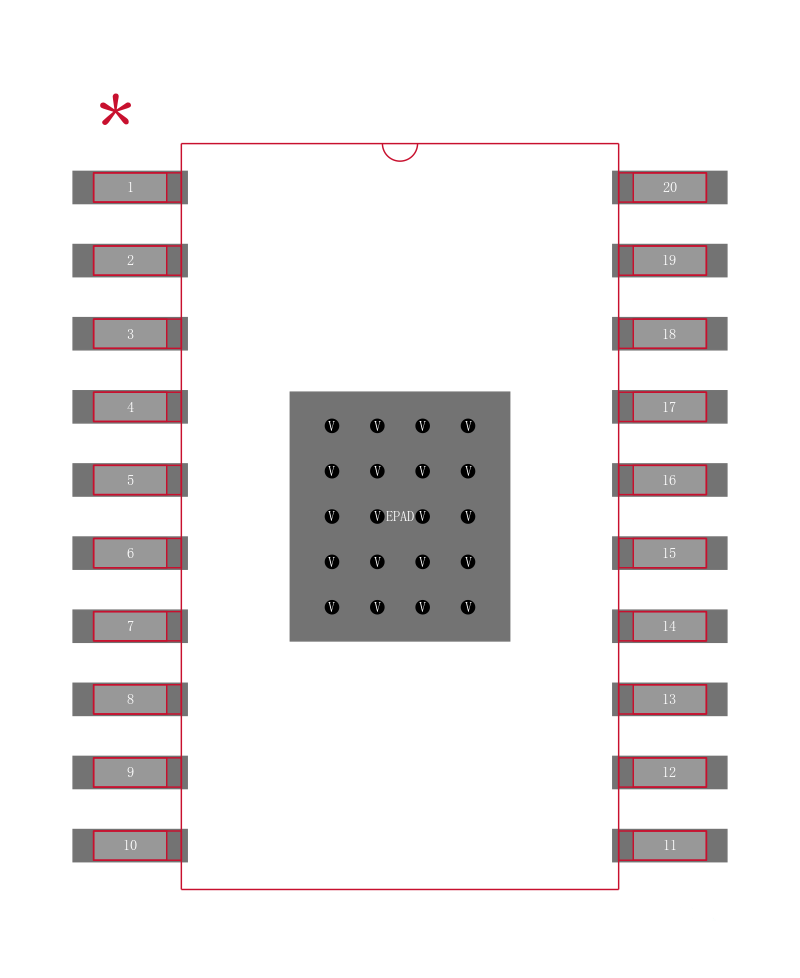

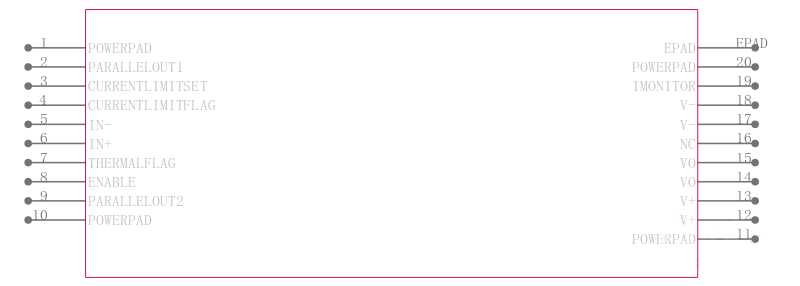

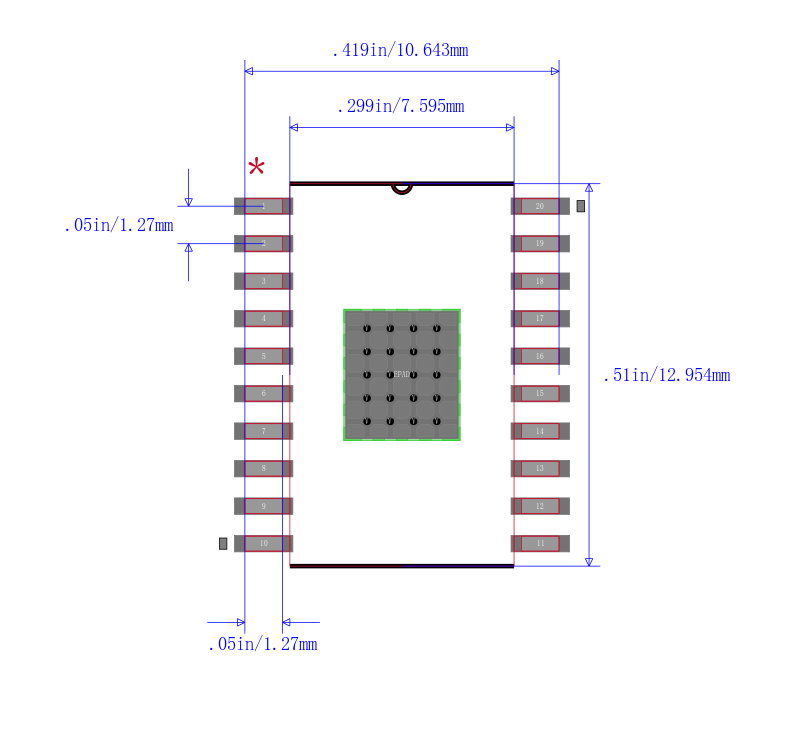

长度 12.82 mm
宽度 7.52 mm
高度 2.55 mm
封装 HSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA569AIDWPR TI 德州仪器 | 当前型号 | 当前型号 |
OPA569AIDWPRG4 德州仪器 | 类似代替 | OPA569AIDWPR和OPA569AIDWPRG4的区别 |
OPA569AIDWP 德州仪器 | 功能相似 | OPA569AIDWPR和OPA569AIDWP的区别 |
OPA569AIDWPG4 德州仪器 | 功能相似 | OPA569AIDWPR和OPA569AIDWPG4的区别 |
