OPA547F/500

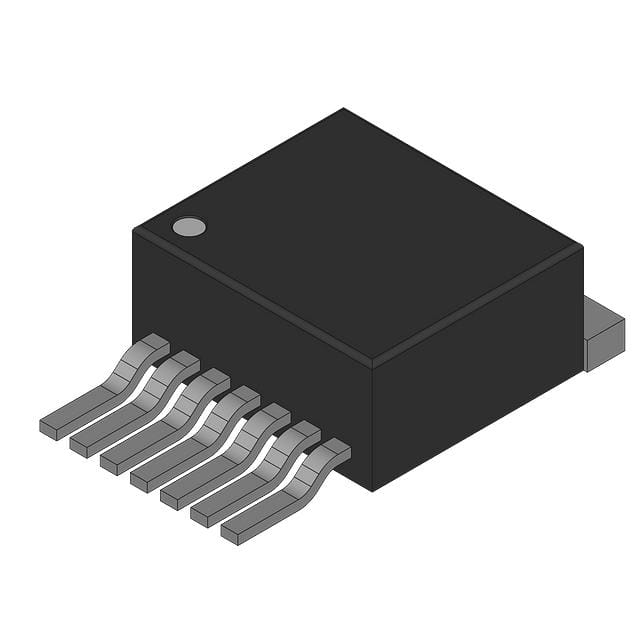

TEXAS INSTRUMENTS  OPA547F/500  芯片, 运算放大器, 1MHZ, 6V/uS, D2PAK-7

DESCRIPON

The OPA547 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current.

FEATURES

●WIDE SUPPLY RANGE

Single Supply: +8V to +60V

Dual Supply: ±4V to ±30V

●HIGH OUTPUT CURRENT:

500mA Continuous

●WIDE OUTPUT VOLTAGE SWING

●FULLY PROTECTED:

Thermal Shutdown

Adjustable Current Limit

●OUTPUT DISABLE CONTROL

●THERMAL SHUTDOWN INDICATOR

●HIGH SLEW RATE: 6V/µs

●LOW QUIESCENT CURRENT

●PACKAGES:

7-Lead TO-220, Zip and Straight Leads

7-Lead DDPAK Surface-Mount
