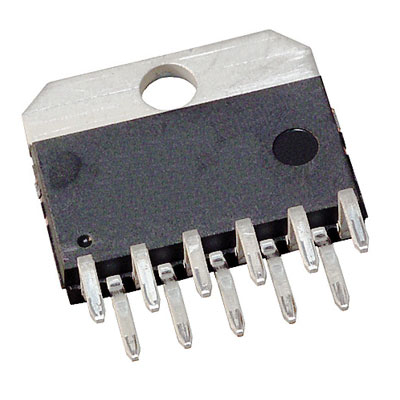

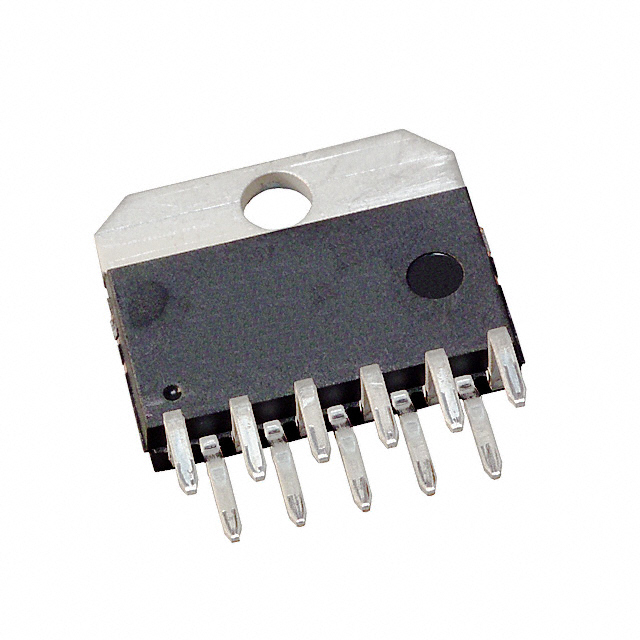

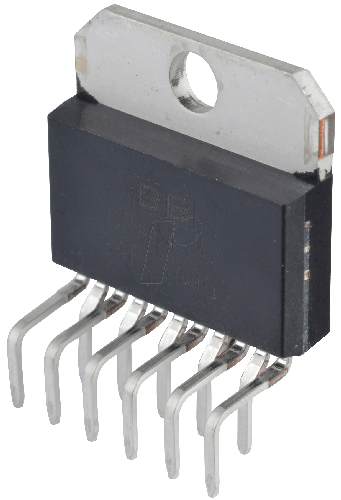

TEXAS INSTRUMENTS OPA549T 运算放大器, 单路, 900 kHz, 1个放大器, 9 V/µs, 8V 至 60V, TO-220, 11 引脚
The is a high-voltage/high-current Operational Amplifier, ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current. The OPA549T operates from either single or dual supplies for design flexibility. The input common-mode range extends below the negative supply. The OPA549 is internally protected against over-temperature conditions and current overloads. In addition, the OPA549 provides an accurate, user-selected current limit. Unlike other designs which use a power resistor in series with the output current path, the OPA549T senses the load indirectly. This allows the current limit to be adjusted from 0 to 10A with a resistor/potentiometer or controlled digitally with a voltage-out or current-out digital-to-analogue Converter DAC. The enable/status E/S pin provides two functions.
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
电源电压DC 30.0 V
工作电压 8V ~ 60V
供电电流 26 mA
电路数 1
通道数 1
针脚数 11
共模抑制比 80 dB
输入补偿漂移 20.0 µV/K
带宽 900 kHz
转换速率 9.00 V/μs
增益频宽积 900 kHz
输入补偿电压 1 mV
输入偏置电流 100 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.9 MHz
共模抑制比Min 80 dB
电源电压 8V ~ 60V
安装方式 Through Hole
引脚数 11
封装 TO-220-11
封装 TO-220-11
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 电机驱动与控制, 测试与测量, 电源管理, 音频, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA549T TI 德州仪器 | 当前型号 | 当前型号 |
OPA541AP 德州仪器 | 类似代替 | OPA549T和OPA541AP的区别 |
OPA549TG3 德州仪器 | 类似代替 | OPA549T和OPA549TG3的区别 |
OPA552PA 德州仪器 | 功能相似 | OPA549T和OPA552PA的区别 |
