非常低的功耗,轨到轨输出,负轨, VFB运算放大器 Very Low-Power, Rail-to-Rail Out, Negative Rail In, VFB Op Amp
The OPA836 and OPA2836 devices OPAx836 are single- and dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback VFB operational amplifiers designed to operate over a power-supply range of 2.5 V to 5.5 V with a single supply, or ±1.25 V to ±2.75 V with a dual supply. Consuming only 1 mA per channel and a unity-gain bandwidth of 205 MHz, these amplifiers set an industry-leading power-to-performance ratio for rail-to-rail amplifiers.
For battery-powered, portable applications where power is of key importance, the low-power consumption and high-frequency performance of the OPA836 and OPA2836 devices offer performance-versus-power capability that is not attainable in other devices. Coupled with a power-savings mode to reduce current to < 1.5 µA, these devices offer an attractive solution for high-frequency amplifiers in battery-powered applications.
The OPA836 RUN package option includes integrated gain-setting resistors for the smallest possible footprint on a printed-circuit board approximately 2.00 mm × 2.00 mm. By adding circuit traces on the PCB, gains of +1, –1, –1.33, +2, +2.33, –3, +4, –4, +5, –5.33, +6.33, –7, +8 and inverting attenuations of –0.1429, –0.1875, –0.25, –0.33, –0.75 can be achieved. See and for details.
The OPA836 and OPA2836 devices are characterized for operation over the extended industrial temperature range of –40°C to +125°C.
输出电流 50mA @5V
供电电流 1 mA
电路数 1
通道数 1
共模抑制比 94 dB
输入补偿漂移 1.10 µV/K
转换速率 560 V/μs
增益频宽积 118 MHz
输入补偿电压 65 µV
输入偏置电流 650 nA
可用通道 S
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 205 MHz
增益带宽 118 MHz
共模抑制比Min 94 dB
安装方式 Surface Mount
引脚数 10

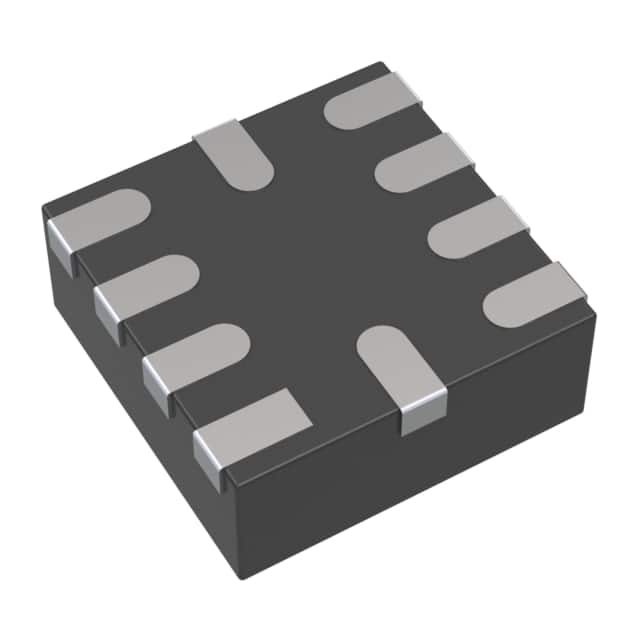

封装 QFN-10
封装 QFN-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA836IRUNR TI 德州仪器 | 当前型号 | 当前型号 |
OPA836IRUNT 德州仪器 | 完全替代 | OPA836IRUNR和OPA836IRUNT的区别 |
OPA836IDBVT 德州仪器 | 类似代替 | OPA836IRUNR和OPA836IDBVT的区别 |
OPA835IRUNR 德州仪器 | 类似代替 | OPA836IRUNR和OPA835IRUNR的区别 |
