OPA2376AIYZDR

低噪声，低静态电流，精密运算放大器电子微调系列 Low-Noise, Low Quiescent Current, Precision Operational Amplifier e-trim Series

DESCRIPON

The OPA376 family represent a new generation of low-noise operational amplifiers with e-trim, offering outstanding dc precision and ac performance. Rail-to-rail output, low offset 25mV max, low noise 7.5nV/√Hz, quiescent current of 950mA max, and a 5.5MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation.

The OPA376 single version is available in MicroSIZE SC70-5, SOT23-5, and SO-8 packages.

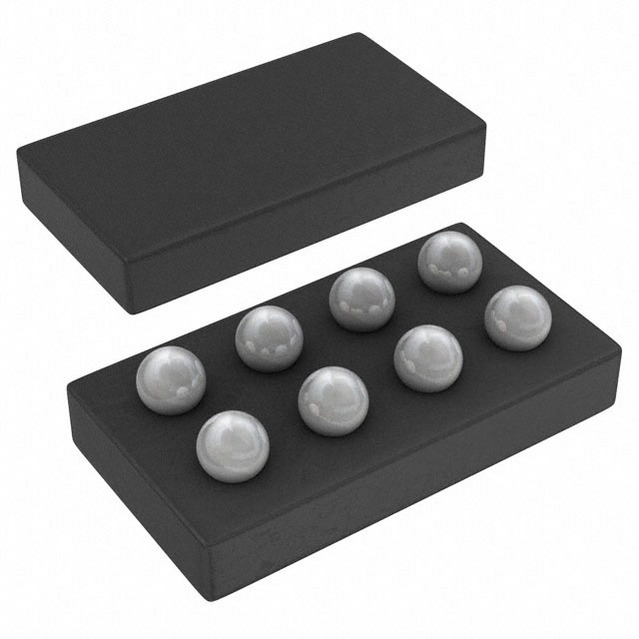

The OPA2376 dual is offered in the WCSP-8, MSOP-8, and SO-8 packages. The OPA4376 quad

is offered in a TSSOP-14 package. All versions are specified for operation from –40°C to +125°C.

FEATURES

• LOW NOISE: 7.5nV/√Hz at 1kHz

• 0.1Hz TO 10Hz NOISE: 0.8mVPP

• QUIESCENT CURRENT: 760mV typ

• LOW OFFSET VOLTAGE: 5mV typ

• GAIN BANDWIDTH PRODUCT: 5.5MHz

• RAIL-TO-RAIL OUTPUT

• SINGLE-SUPPLY OPERATION

• SUPPLY VOLTAGE: 2.2V to 5.5V

• SPACE-SAVING PACKAGES:

– SC-70, SOT23, WCSP, MSOP, TSSOP

APPLICATIONS

• ADC BUFFER

• AUDIO EQUIPMENT

• MEDICAL INSTRUMENTATION

• HANDHELD TEST EQUIPMENT

• ACTIVE FILTERING

• SENSOR SIGNAL CONDITIONING
