OPA355NA/3K

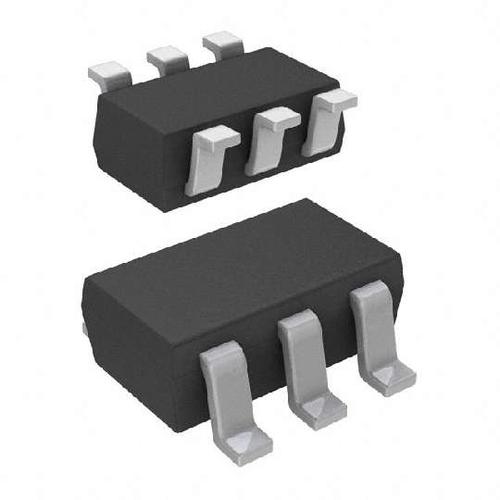

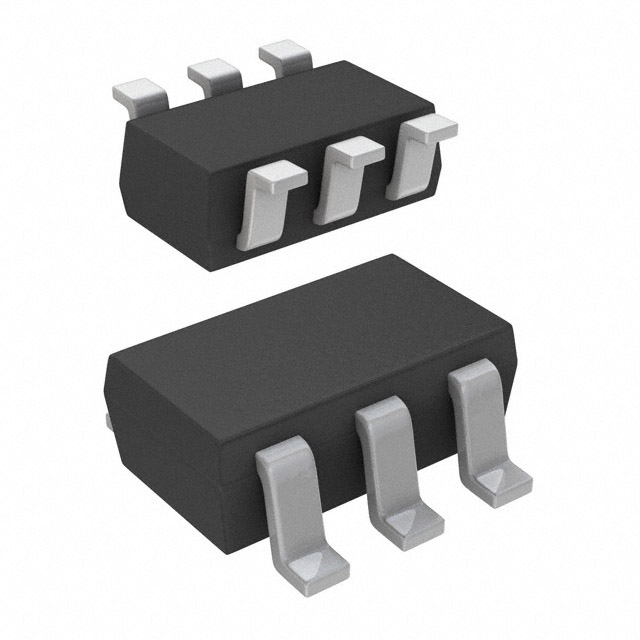

TEXAS INSTRUMENTS  OPA355NA/3K  芯片, 运算放大器, 200MHz, 360V/uS, SOT-23-6

DESCRIPON

The OPA355 series high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. The OPA355 is unity gain stable and can drive large output currents. In addition, the OPA355 has a digital shutdown Enable function. This

feature provides power savings during idle periods and places the output in a high-impedance state to support output multiplexing. Differential gain is 0.02% and differential phase is 0.05°. Quiescent current is only 8.3mA per channel.

FEATURES

●UNITY-GAIN BANDWIDTH: 450MHz

●WIDE BANDWIDTH: 200MHz GBW

●HIGH SLEW RATE: 360V/µs

●LOW NOISE: 5.8nV/√Hz

●EXCELLENT VIDEO PERFORMANCE:

DIFF GAIN: 0.02%, DIFF PHASE: 0.05°

0.1dB GAIN FLATNESS: 75MHz

●INPUT RANGE INCLUDES GROUND

●RAIL-TO-RAIL OUTPUT within 100mV

●LOW INPUT BIAS CURRENT: 3pA

●LOW SHUTDOWN CURRENT: 3.4µA

●ENABLE/DISABLE TIME: 100ns/30ns

●THERMAL SHUTDOWN

●SINGLE-SUPPLY OPERATING RANGE: 2.5V to 5.5V

●MicroSIZE PACKAGES
