OPA4322AIPWR

20兆赫，低噪声， 1.8 -V ， RRI / O， CMOS运算与关断放大器 20-MHz, Low-Noise, 1.8-V, RRI/O, CMOS Operational Amplifier with Shutdown

DESCRIPON

The OPA322 series consists of single, dual, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail inputs/outputs optimized for low-power, single-supply applications. Specified over a wide supply range of 1.8 V to 5.5 V, the low quiescent current of only 1.5 mA per channel makes these devices well-suited for power-sensitive applications.

FEATURES

• Gain Bandwidth: 20 MHz

• Low Noise: 8.5 nV/√Hz at 1 kHz

• Slew Rate: 10 V/μs

• Low THD+N: 0.0005%

• Rail-to-Rail I/O

• Offset Voltage: 2 mV max

• Supply Voltage: 1.8 V to 5.5 V

• Supply Current: 1.5 mA/ch

– Shutdown: 0.1 μA/ch

• Unity-Gain Stable

• Small Packages:

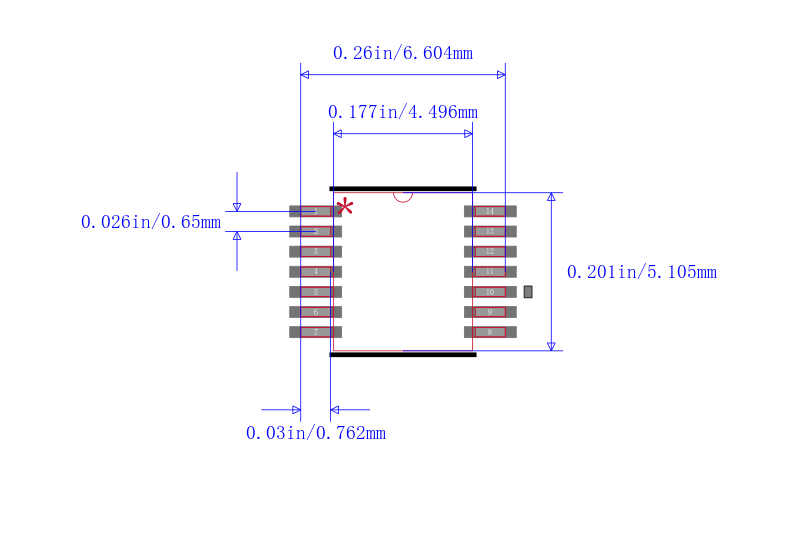

– SOT23, DFN, MSOP, TSSOP
