OPA 系列,Texas Instruments### 运算放大器,Texas Instruments
高速,OPA 系列,Texas Instruments
立创商城:
OPA2652E/250
德州仪器TI:
SpeedPlus™ Dual, 700MHz, Voltage-Feedback Operational Amplifier
得捷:
IC OPAMP VFB 2 CIRCUIT SOT23-8
欧时:
Texas Instruments 运算放大器 OPA2652E/250 双, 200MHz增益带宽积, 9 V单电源电压, 8引脚 SOT-23封装
贸泽:
高速运算放大器 Dual 700MHz Voltage Feedback
艾睿:
The infinite open-loop gain, high input impedance and low output impedance of this voltage feedback amplifier OPA2652E/250 OP amp from Texas Instruments produces a large amount of gain. Its typical dual supply voltage is ±5 V, with a minimum of ±3 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with bicom technology. This device uses one or two power supplies. It has 2 channels per chip.
安富利:
OP Amp Dual Volt Fdbk ±6V/12V 8-Pin SSOP T/R
Chip1Stop:
OP Amp Dual Volt Fdbk ±6V/12V 8-Pin SSOP T/R
Verical:
Op Amp Dual High Speed Amplifier ±6V/12V 8-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS OPA2652E/250 Operational Amplifier, Dual, 2 Amplifier, 200 MHz, 335 V/µs, ± 3V to ± 6V, SOT-23, 8 Pins
DeviceMart:
IC OPAMP VFB 200MHZ DUAL SOT23-8
Win Source:
IC OPAMP VFB 200MHZ SOT23-8
供电电流 11 mA
电路数 2
通道数 2
共模抑制比 75 dB
输入补偿漂移 7.00 µV/K
带宽 200 MHz
转换速率 335 V/μs
增益频宽积 200 MHz
输入补偿电压 1.5 mV
输入偏置电流 4 µA
可用通道 D
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 700 MHz
增益带宽 200 MHz
共模抑制比Min 75 dB
电源电压 6V ~ 12V
安装方式 Surface Mount
引脚数 8

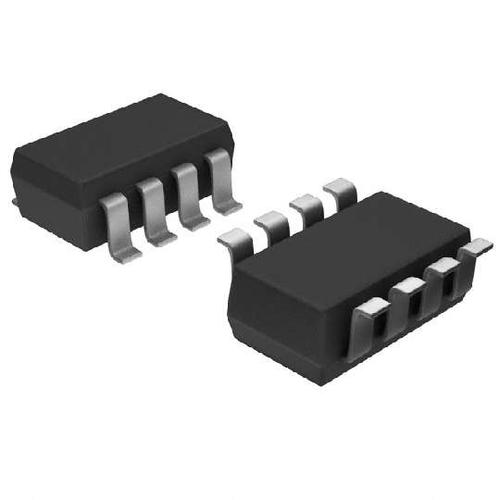

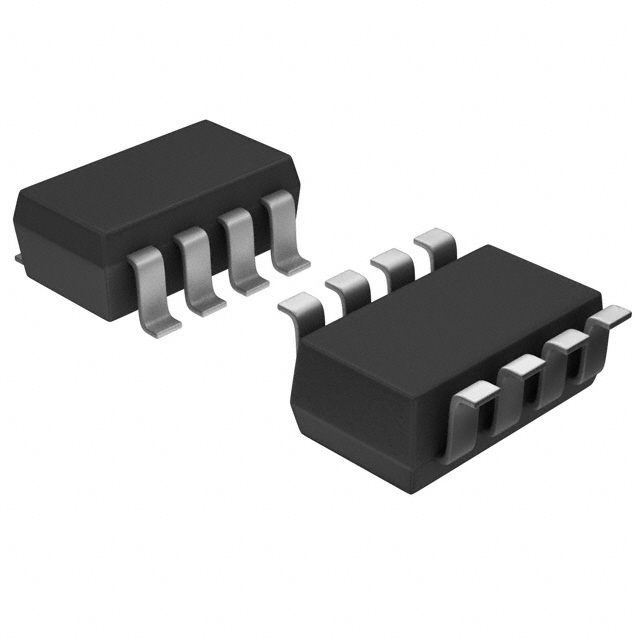

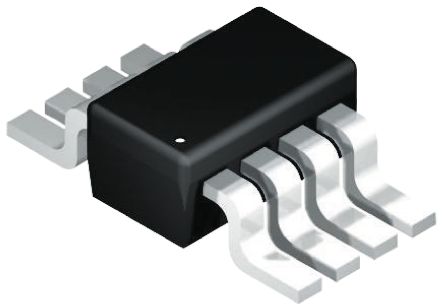

封装 SOT-23-8

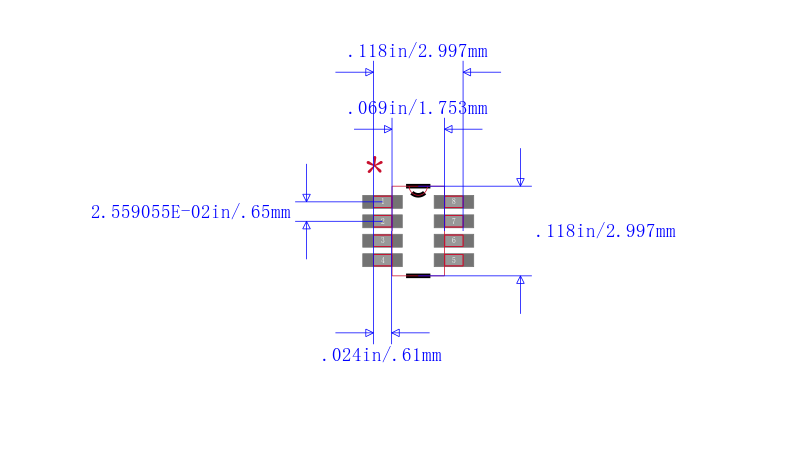

长度 2.9 mm
宽度 1.63 mm
高度 1.1 mm
封装 SOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA2652E/250 TI 德州仪器 | 当前型号 | 当前型号 |
OPA2652U 德州仪器 | 完全替代 | OPA2652E/250和OPA2652U的区别 |
OPA2652U/2K5 德州仪器 | 完全替代 | OPA2652E/250和OPA2652U/2K5的区别 |
OPA2652E/3K 德州仪器 | 类似代替 | OPA2652E/250和OPA2652E/3K的区别 |
