汽车类 250MHz 轨到轨 I/O CMOS 四路运算放大器 14-TSSOP -40 to 125
The design of the OPAx354-Q1 family of high-speed, voltage-feedback CMOS operational amplifiers is for video and other applications requiring wide bandwidth. These devices are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9 mA per channel.
The OPAx354-Q1 family of operational amplifiers op-amps are optimized for operation on single or dual supplies as low as 2.5 V ±1.25 V and up to 5.5 V ±2.75 V. Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, supporting wide dynamic range.
The single-supply version OPA354A-Q1 is available in the tiny SOT23-5 DBV package. The dual-supply version OPA2354A-Q1 is available in the miniature VSSOP-8 DGK package and features completely independent circuitry for lowest crosstalk and freedom from interaction. The quad-supply version OPA4354-Q1 is available in the SOP-14 PW package. The device specifications are for operation over the automotive temperature range of –40°C to 125°C.
供电电流 4.9 mA
电路数 4
共模抑制比 56 dB
输入补偿漂移 4.00 µV/K
转换速率 150 V/μs
增益频宽积 100 MHz
输入补偿电压 8 mV
输入偏置电流 0.000003μA @5.5V
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 250 MHz
共模抑制比Min 56 dB
安装方式 Surface Mount

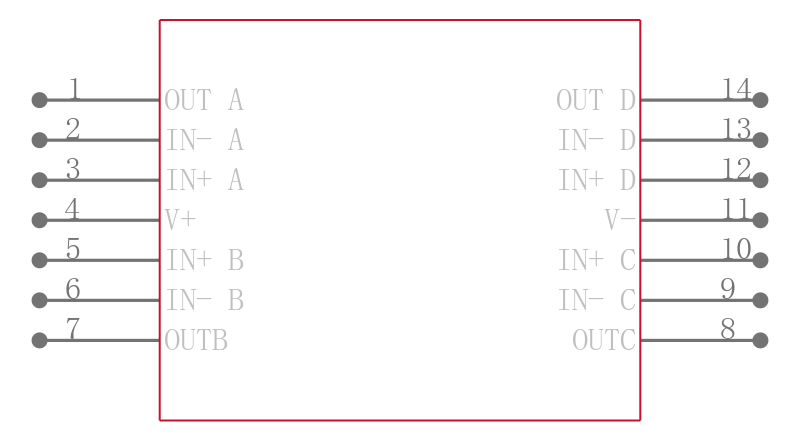

引脚数 14
封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
