双路,超宽带电流反馈运算放大器具有禁用 Dual, Ultra-Wideband, Current-Feedback OPERATIONAL AMPLIFIER with Disable
The OPA2695 is a dual, very high bandwidth, current-feedback op amp that combines exceptional 2900V/µs slew rate and low input voltage noise to deliver a precision, low-cost, high dynamic range intermediate frequency IF amplifier. The device has been optimized for high gain operation, and the pin outs of the two available packages QFN-16, SO-8 have been optimized to provide symmetrical input and output paths. This architecture makes the OPA2695 an ideal choice as a differential driver, such as for a high-speed analog-to-digital converter ADC.
The OPA2695 low 12.9mA/channel supply current is precisely trimmed at +25°C. This trim, along with a low temperature drift, gives low system power over temperature. System power may be further reduced with the optional disable control pin. Leaving this pin open, or holding it high, gives normal operation. If pulled low, the OPA2695 supply current drops to less than 200µA/channel. This power-saving feature, along with exceptional single +5V operation, makes the OPA2695 ideal for portable applications. The OPA2695 is available in an SO-8 without disable package or QFN-16 package with disable.
输出电流 90mA @5V
供电电流 25.8 mA
电路数 2
通道数 2
共模抑制比 51 dB
输入补偿漂移 15.0 µV/K
转换速率 2.90 kV/μs
增益频宽积 1.10 GHz
输入补偿电压 300 µV
输入偏置电流 20 µA
可用通道 S, D, T
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 1.1 GHz
共模抑制比Min 51 dB
电源电压Max 12 V
电源电压Min 3.5 V
安装方式 Surface Mount

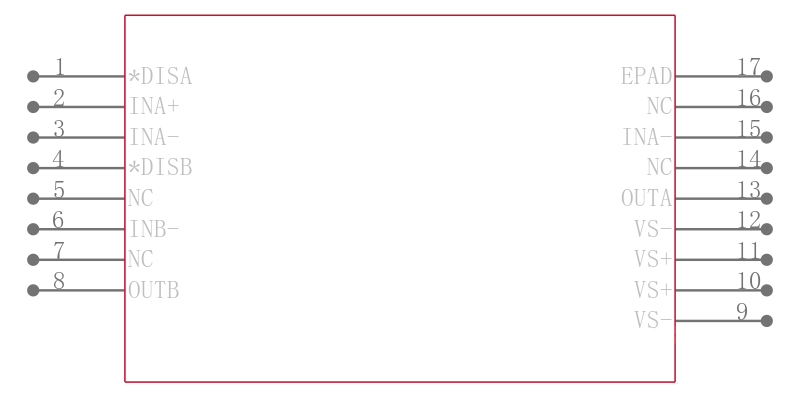

引脚数 16

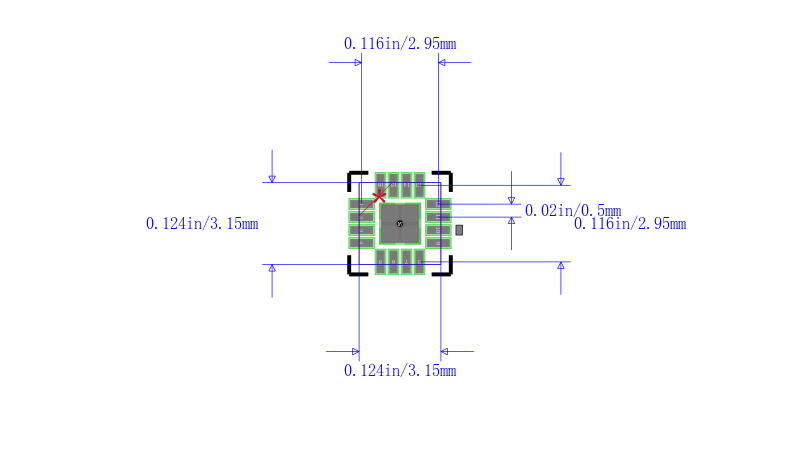

封装 VQFN-16
宽度 3 mm
封装 VQFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA2695IRGTT TI 德州仪器 | 当前型号 | 当前型号 |
OPA2695IRGTR 德州仪器 | 类似代替 | OPA2695IRGTT和OPA2695IRGTR的区别 |
OPA2695IDG4 德州仪器 | 类似代替 | OPA2695IRGTT和OPA2695IDG4的区别 |
OPA2695ID 德州仪器 | 功能相似 | OPA2695IRGTT和OPA2695ID的区别 |
