STMICROELECTRONICS OA4MPA33Q 运算放大器, 四路, 150 kHz, 4个放大器, 0.06 V/µs, 1.5V 至 5.5V, QFN, 16 引脚
The OA1MPA, OA2MPA, OA4MPA series of single, dual, and quad operational amplifiers offer low-voltage operation, rail-to-rail input and output, and excellent precision Violower than 200 μV at 25 °C.
These low power op amps benefit from STMicroelectronics 5 V CMOS technology and offer an excellent speed/power consumption ratio 150 kHz typical gain bandwidth while consuming less than 14 μA at 5 V. The OA1MPA, OA2MPA, OA4MPA series also feature an ultra-low input bias current.
The OA1MPA, OA2MPA, OA4MPA are respectively the single, dual and quad operational amplifier versions and are housed in the smallest industrial package.
The OA1MPA, OA2MPA, OA4MPA family is the ideal choice for wearable, fitness and healthcare applications.
**Key Features**
输出电流 56mA @5V
供电电流 10 µA
电路数 4
针脚数 16
共模抑制比 74 dB
带宽 150 kHz
转换速率 60.0 mV/μs
增益频宽积 0.15 MHz
输入补偿电压 0.2 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
共模抑制比Min 74 dB
电源电压 1.5V ~ 5.5V
安装方式 Surface Mount
引脚数 16

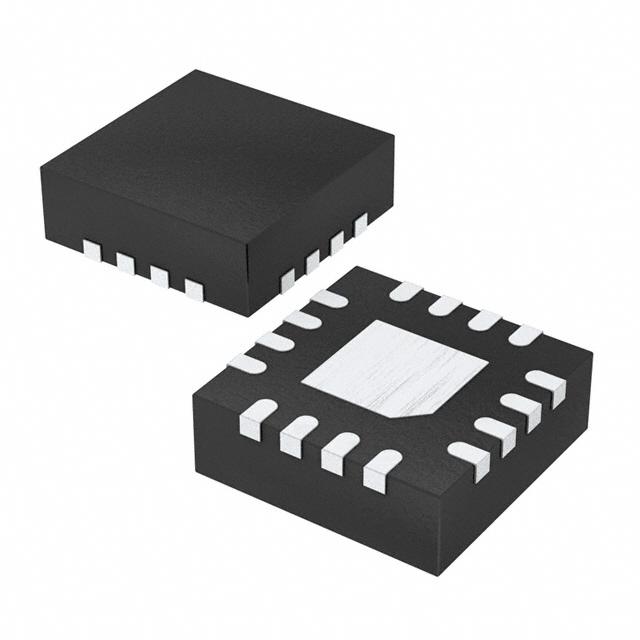

封装 QFN-16
封装 QFN-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
