OA4ZHA33Q

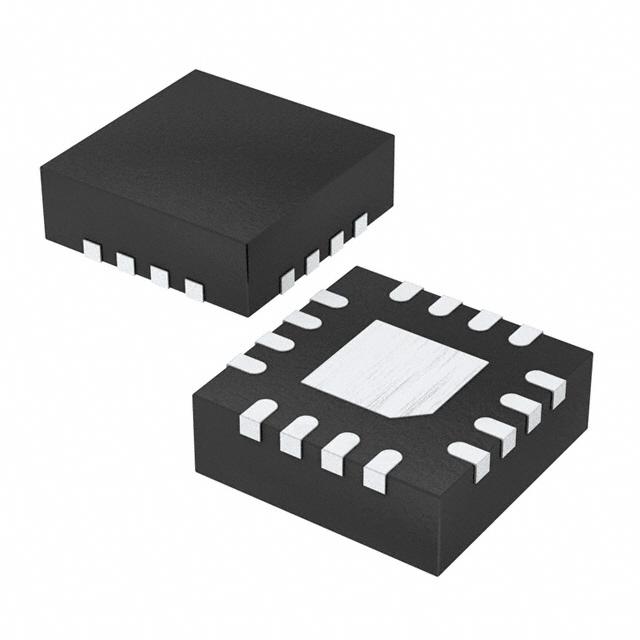

STMICROELECTRONICS  OA4ZHA33Q  运算放大器, 四路, 400 kHz, 4个放大器, 0.19 V/µs, 1.8V 至 5.5V, QFN, 16 引脚

The OA1ZHA, OA2ZHA, OA4ZHA series of low-power, high-precision op amps offers very low input offset voltages with virtually zero drift.

OA1ZHA, OA2ZHA, OA4ZHA are respectively the single, dual and quad op amp versions, with pinout compatible with industry standards.

The OA1ZHA, OA2ZHA, OA4ZHA series offers rail-to-rail input and output, excellent speed/power consumption ratio, and 400 kHz gain bandwidth product, while consuming less than 40 µA at 5 V. All devices also feature an ultra-low input bias current.

The OA1ZHA, OA2ZHA, OA4ZHA family is the ideal choice for wearable, fitness and healthcare applications.

**Key Features**

.

Very high accuracy and stability: offset voltage 5 µV max at 25 °C, 8 µV over full temperature range -40 °C to 125 °C

.

Rail-to-rail input and output

.

Low supply voltage: 1.8 - 5.5 V

.

Low power consumption: 40 µA max. at 5 V

.

Gain bandwidth product: 400 kHz

.

High tolerance to ESD: 4 kV HBM

.

Extended temperature range: -40 to 125 °C

.

Micro-packages: SC70-5, DFN8 2x2, and QFN16 3x3
