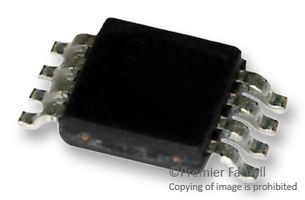

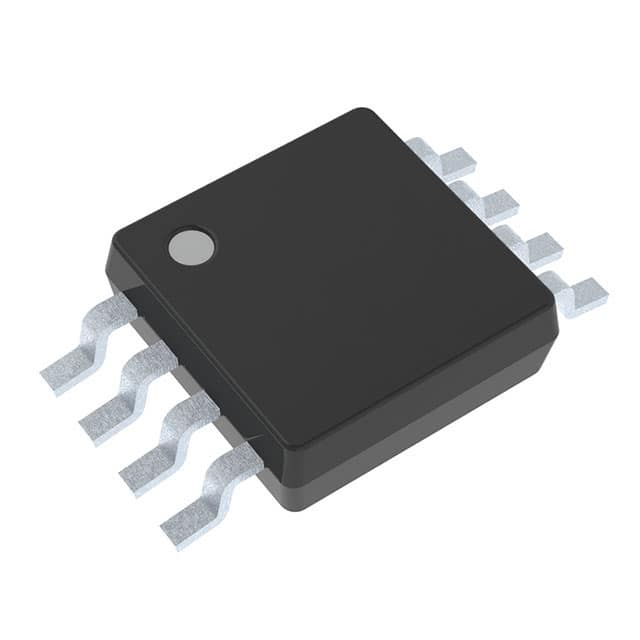

TEXAS INSTRUMENTS OPA180IDGKT 运算放大器, 单路, 2 MHz, 1个放大器, 0.8 V/µs, ± 2.25V 至 ± 18V, 4.5V 至 36V, VSSOP, 8 引脚
The is a low-noise rail-to-rail output Operational Amplifier uses zero-drift techniques to simultaneously provide low offset voltage 75µV and near zero-drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing within 18mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range of 4 to 36V ±2 to ±18V.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
供电电流 450 µA
电路数 1
针脚数 8
共模抑制比 104 dB
输入补偿漂移 100 nV/K
带宽 2 MHz
转换速率 800 mV/μs
增益频宽积 2 MHz
输入补偿电压 15 µV
输入偏置电流 250 pA
工作温度Max 105 ℃
工作温度Min -40 ℃
共模抑制比Min 104 dB
安装方式 Surface Mount
引脚数 8

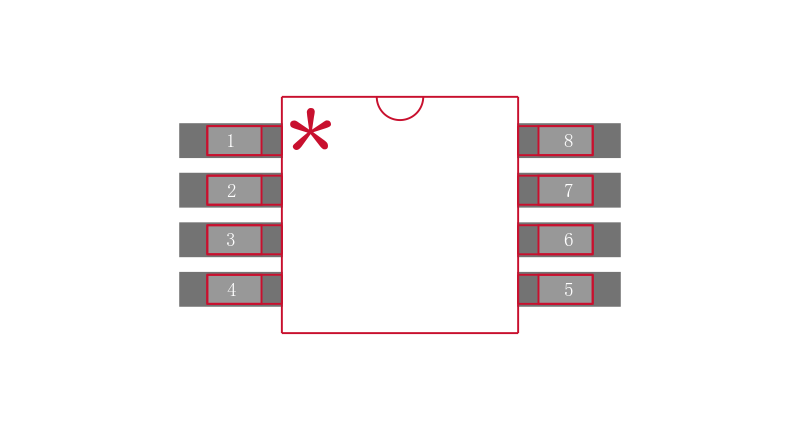

封装 VSSOP-8
高度 0.95 mm
封装 VSSOP-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA180IDGKT TI 德州仪器 | 当前型号 | 当前型号 |
OPA180IDGKR 德州仪器 | 类似代替 | OPA180IDGKT和OPA180IDGKR的区别 |
